I would like to conduct an evaluation of the equipment prior to purchase.
Want to use the equipment but plan to complete it in a short period of time. If possible, purchase... etc.
So why not consider renting equipment once? You can try it out for less than 1/10th of the purchase price. We also offer test trials and sample processing for a fee.
Rental List
For rental periods and prices, please inquire below. Some models can be rented free of charge for one week (repeated rentals are not available). (Repeated rentals are not available.) Hotplates have been used, so they may have discoloration on the surface, some scratches, etc., but their operation has been checked at the time of shipment.
Minimum rental period is one month. Extended rentals are available depending on availability.
The rental start date is the invoice date for payment of the fee. Please make payment in accordance with your company's regulations. However, we accept payment by bank transfer only.
For inquiries, please contact the rental desk.
Products sold as demo units are the products used in the demo units. The performance is the same as that of the standard product. The warranty period is the same as for regular products. However, a separate controller (new or demo unit) must be purchased for hot plates, etc. Please contact us for availability. 1 A controller must be purchased separately.
| category | Model name | Main Specifications | Rental price, excluding tax (yen/month) | Demo unit Sales price, excluding tax (yen) |
|---|---|---|---|---|
| hot plate | PH121 | Maximum temperature 200°C, plate size 100 x 100 mm, AC100V, 1A | 20,000 | 26,000 *1 |
| PH121-50 | Max. temperature 140°C, plate size 50 x 50 mm, AC100V, 0.5A | 20,000 | 19,000 *1 | |
| PH131B | Max. temperature 400°C, size □60mm, 100V, 1A, fast temperature rise | 20,000 | 55,000 *1 | |
| PH200-40 | Max. temperature 140°C, plate size 40 x 40 mm, 100 V, 0.16 A | 20,000 | 35,000 *1 | |
| PH200-100 | Max. temperature 150°C, plate size 100 x 100 mm, 100 V, 1 A | 20,000 | 35,000 *1 | |
| PA3010 | Max. temperature 300°C, plate size 100 x 100 mm, 100 V, 3 A | 20,000 | ||
| PA3020 | Max. temperature 300°C, plate size 200 x 200 mm, 100 V, 8 A | 20,000 | ||
| PA3003 | Max. temperature 300°C, plate size 30 x 30 mm, 100 V, 1 A | 20,000 | ||
| PA3005 | Max. temperature 300°C, plate size 50 x 50 mm, 100 V, 1 A | 20,000 | ||
| PA3020 | Max. temperature 300°C, plate size 200 x 200 mm, 100 V, 12 A | 20,000 | ||
| PA3040 | Max. temperature 300°C, plate size 400 x 200 mm, 100 V, 15 A | 20,000 | ||
| PA4007 | Max. temperature 400°C, plate size 70 x 80 mm, 100 V, 4.8 A | 20,000 | 35,000 *1 | |
| PA6008 | Max. temperature 600°C, plate size 80 x 80 mm, 100 V, 4 A | 20,000 | 65,000 *1 | |
| PA8005-CC | Max. temperature 800°C, plate size 50 x 50 mm, 100 V, 10 A, safety cover type | 55,000 | ||
| PA8015 | Max. temperature 800°C, plate size 175 x 175 mm, 1φ, 200 V, 12.5 A | 60,000 | ||
| Vacuum hot chamber | PH222 | Max. temperature 400°C, plate size 100 x 100 mm, 100 V, 12.5 A, simple vacuum chamber, vacuum pump required separately | 55,000 | 80,000*1 |
| PH222-F | Maximum temperature 400°C, plate size 120 x 120 mm, Siloxane outgas compatible , 100V, 12.5A, simple vacuum chamber, vacuum pump separately required | 60,000 | ||
| vacuum pump | Diaphragm vacuum pump for PH222, pumping speed 20L/min, attainable vacuum 200Pa, 100V, with tube | 30,000 | 100,000 | |
| Heat stages for small microscopes | PN121 | Max. temperature 200°C, plate size 60 x 34 mm, 100 V, 1 A | 30,000 | |
| Wafer Hot Chuck | PH201-K-06 | MAX. TEMPERATURE 200°C, FOR PLATE SIZE 6" WAFER, 100 V, 9 A | in preparation | |
| Film Hot Chuck | PA2012-WPFC | Porous ceramic adsorption hot plate, max. temperature 200°C, plate size 120 x 120 mm, waterproof | 40,000 | |
| PA2020-WP | Porous ceramic adsorption hot plate, max. temperature 200°C, plate size 200 x 200 mm | 40,000 | 65,000 *1 | |
| PA2020-WP | Porous ceramic adsorption hot plate, max. temperature 200°C, plate size 200 x 200 mm | 40,000 | ||
| Nitrogen purge hot plate | PH210 | Max. temperature 400°C, plate size 60 x 60 mm, 100 V, 2 A, old type | 30,000 | |
| High-temperature ceramic heat stage | PX6004 | Max. temperature 600°C, plate size 40 x 40 mm, 100 V, 4 A | 40,000 | |
| PX8004 | Max. temperature 800°C, plate size 40 x 40 mm, 100 V, 4 A | 50,000 | ||

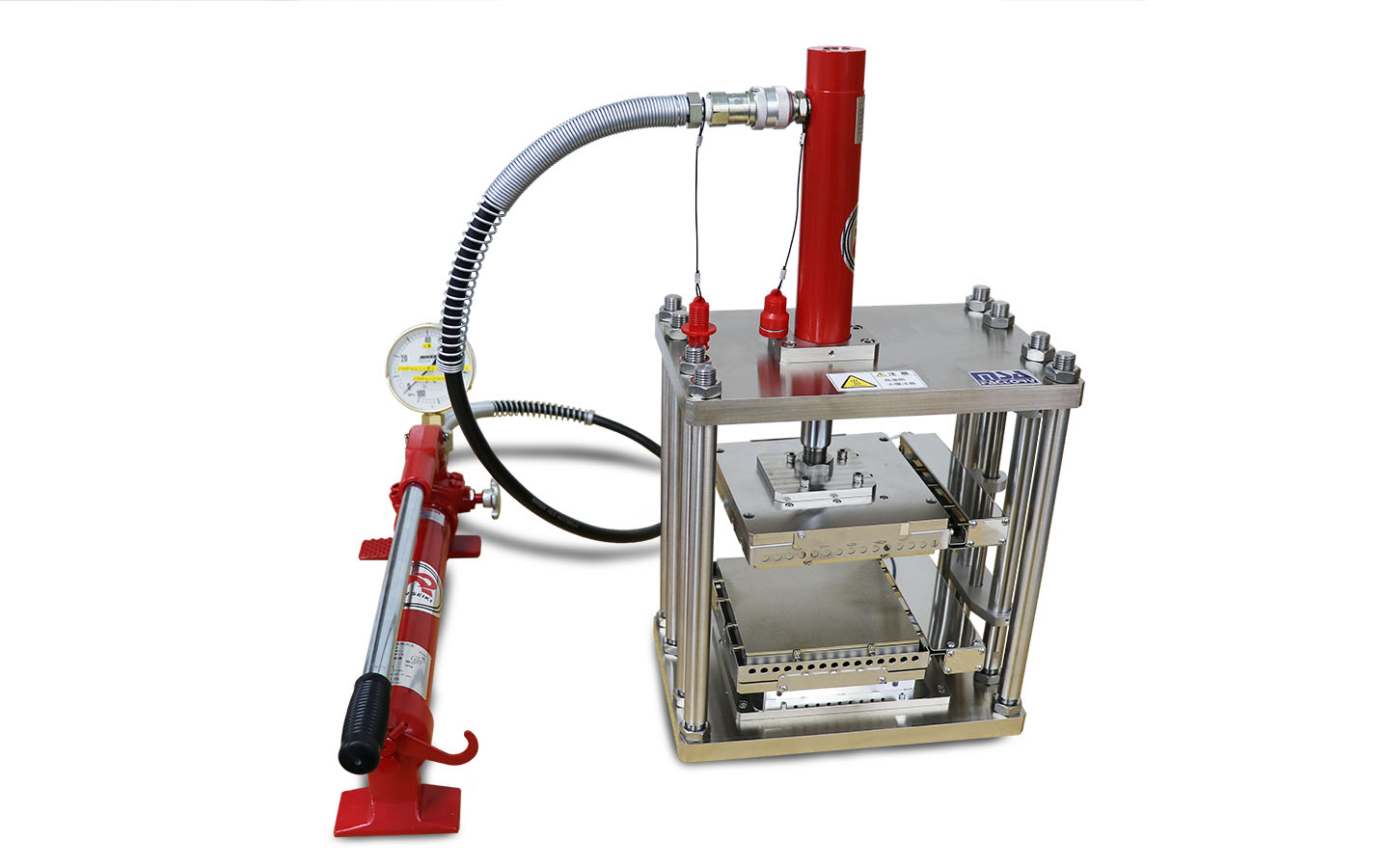

| Hydraulic manual hot press | HE6030-KH | Max. temperature 600°C, plate size 80 x 80 mm, 100 V, 12 A, max. load 30 KN, with load cell indicator, old type | 95,000 | 400,000 |
| Hydraulic manual hot press 2 | HE6030-KH | Max. temperature 600°C, plate size 80 x 80 mm, 100 V, 12 A, max. load 30 KN, with load cell indicator, new type | 108,000 |
Rental Terms and Conditions_2022
