超高温ホットプレス 最高温度 800℃までラインナップ グローブボックスと併せて製作対応いたします。

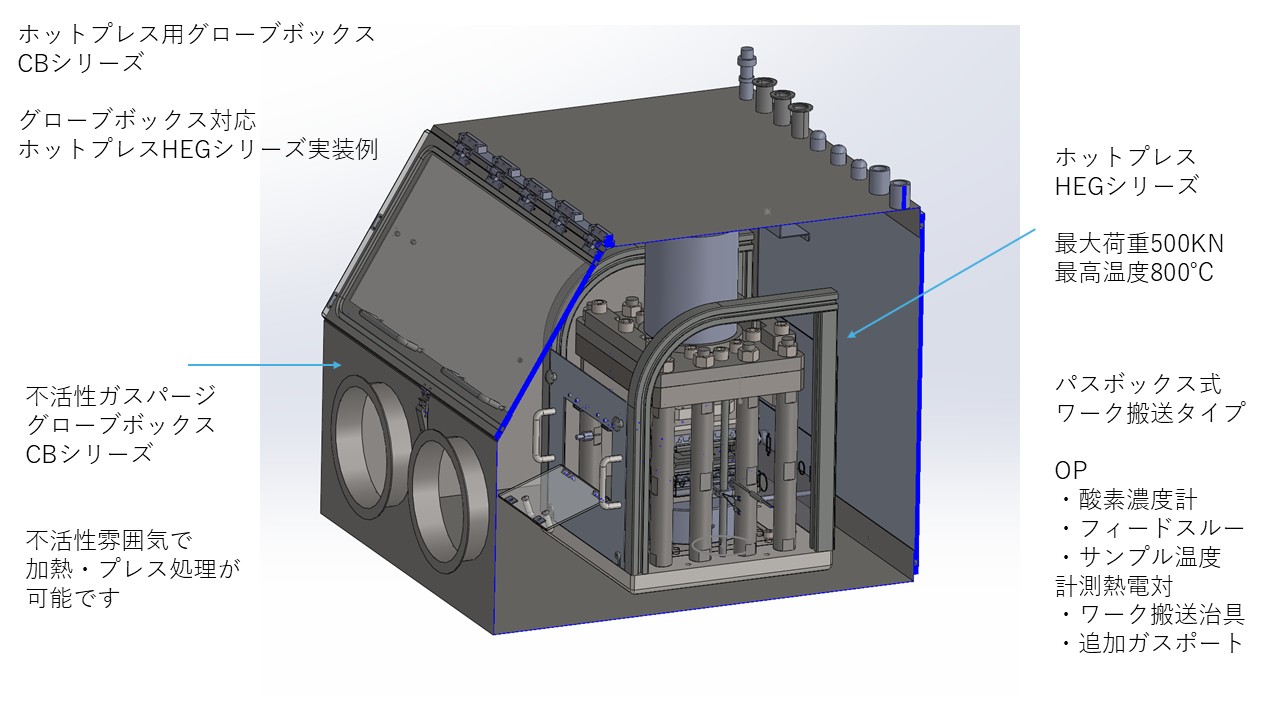

Installation in glove box with low head structure Hydraulic press
HIGH THRUST HOT PRESS USING HYDRAULIC PRESS CYLINDER, THRUST OF 500, 300KN, 100KN, 60KN, 30KN, AND CUSTOM ORDERS AVAILABLE.
High thrust by hydraulic press
HIGH THRUST HOT PRESS USING HYDRAULIC PRESS CYLINDER, THRUST OF 500, 300KN, 100KN, 60KN, 30KN, AND CUSTOM ORDERS AVAILABLE.
high efficiency
Applying the technology cultivated in high-temperature hot plates to hot presses. Lineup up to high temperatures that were not available in conventional hot presses.
safety
Safety shutters and over-temperature protection functions are incorporated in the controller. Please refer to the Hot Press General Catalog.
QQQQ
List of models
 |
|
|
 |
|
|---|---|---|---|---|
model number |
HEG1580 |
HEG1530 |
HEG3030 |
HEG5030 |
type |
INSTALLED IN GB | |||
Temperature range |
Room temperature to 800℃ | Room temperature to 300°C | Room temperature to 300°C | Room temperature to 300°C |
Plate size |
100 x 100mm | 100 x 100mm | 100 x 100mm | 100 x 100mm |
Plate Material |
heat-resistant superalloy | |||
load |
100KN | 150KN | 300KN | 500KN |
controller |
Load cell included, upper and lower plates temperature controlled separately | |||
Supply voltage |
AC100V OR 200V | |||
Product size |
-
|
- | - | - |
Product weight |
- | - | - | - |
option |
Feed-through, press jig/flatness improvement type | |||
