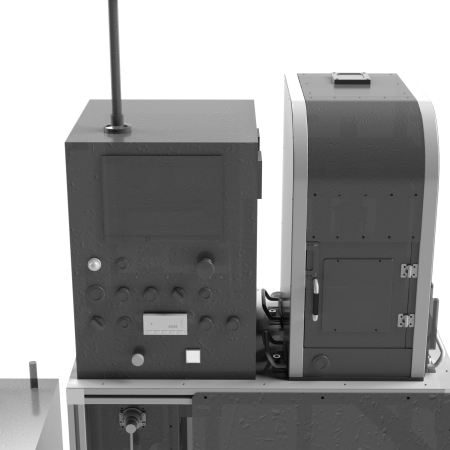

Ultra-high temperature hot press With our know-how in hot plates, we have a lineup of products with a maximum temperature of up to 800°C.
Small thrust and high precision using air pressure press
HIGH THRUST HOT PRESS USING PNEUMATIC PRESS CYLINDER, THRUST OF 1000N, 2000N, AND CUSTOMIZATION AVAILABLE. COMPARED TO HYDRAULIC AND MANUAL, IT CAN APPLY A RELATIVELY SMALL THRUST (1000N OR LESS) STABLY.
high efficiency
Applying the technology cultivated in high-temperature hot plates to hot presses. Lineup up to high temperatures that were not available in conventional hot presses.
safety
Safety shutters and over-temperature protection functions are incorporated in the controller. Please refer to the Hot Press General Catalog.
Model list 1
model number |
HE40151-A,-AH |
HE40151-A,-AH |
HE60081-A,-AH |
HE80061-A,-AH |
|---|---|---|---|---|
type |
卓上設置または床面設置 | |||
Temperature range |
400℃ | 400℃ | 600℃ | 800℃ |
Plate size |
150 x 150mm | 80×80mm | 80 x 80mm | 60 x 60mm |
Plate Material |
ALUMINUM ALLOY + SUS | Super heat-resistant alloys | ||
load |
1000N | |||
controller |
PCC100HE-ARK Without load cell indicator
PCC100HE-ARKH with load cell indicator |
|||
option |
Safety covers and other custom specifications available
|
|||
Product size |
With safety cover: W304×D350×H700mm
Without safety cover: W280 x D200 x H470 |
|||
Product weight |
With safety cover: Approx. 45 kg Without safety cover: Approx. 40 kg
|
|||
Model list 2
model number |
HE40152-A,-AH |
HE40152-A,-AH |
HE60082-A,-AH |
HE80062-A,-AH |
|---|---|---|---|---|
type |
卓上設置または床面設置 | |||
Temperature range |
400℃ | 400℃ | 600℃ | 800℃ |
Plate size |
150 x 150mm | 80×80mm | 80 x 80mm | 60 x 60mm |
Plate Material |
ALUMINUM ALLOY + SUS | Super heat-resistant alloys | ||
load |
2000N | |||
controller |
PCC100HE-ARK Without load cell indicator
PCC100HE-ARKH with load cell indicator |
|||
option |
Safety covers and other custom specifications available
|
|||
Product size |
With safety cover: W304×D350×H700mm
Without safety cover: W280 x D200 x H470 |
|||
Product weight |
With safety cover: Approx. 45 kg Without safety cover: Approx. 40 kg
|
|||
