We also offer a range of hand-operated pressed products and inexpensive variations, including optional dies.
We offer proposals including dies for crushing, powder molding, etc.

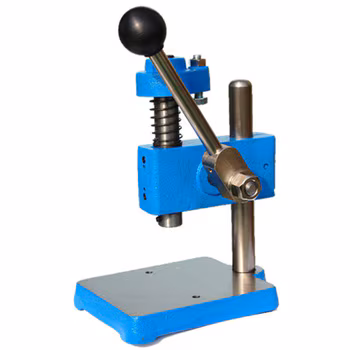

Manual press with press and compression function jig (customizable) without heat plate
Custom-made jigs (manufactured to customer specifications) and molds
Molds and punching jigs
In addition to the parallel plate type, we can also install furnace structures that are optimal for press molding of powders, etc., and surface treatments (to improve powder peelability). We also support custom manufacturing according to mold sizes, etc.
Example of mold shape
variation
We have a variety of hot press products: hand, digital servo, hydraulic press, and other custom-made types. Please refer to the Hot Press General Catalog.

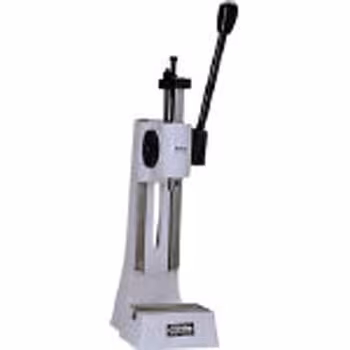

Model list Hand press Jig and die specifications Applications
 |
 |
|
 |
|
|---|---|---|---|---|
model number |
HE060-HD |
HE501-HD |
HE201-HD |
HE202-HD |
Estimated thrust*. |
Approx. 600N |
5KN |
2KN |
2KN |
Head height adjustment range |
Approx. 50-100mm | 60-190mm | 60-190mm | 60-190mm |
stroke |
30mm | 30mm | 30mm | 30mm |
Purpose |
Powder compaction/compaction, tablet crushing, crimping, compaction | |||
