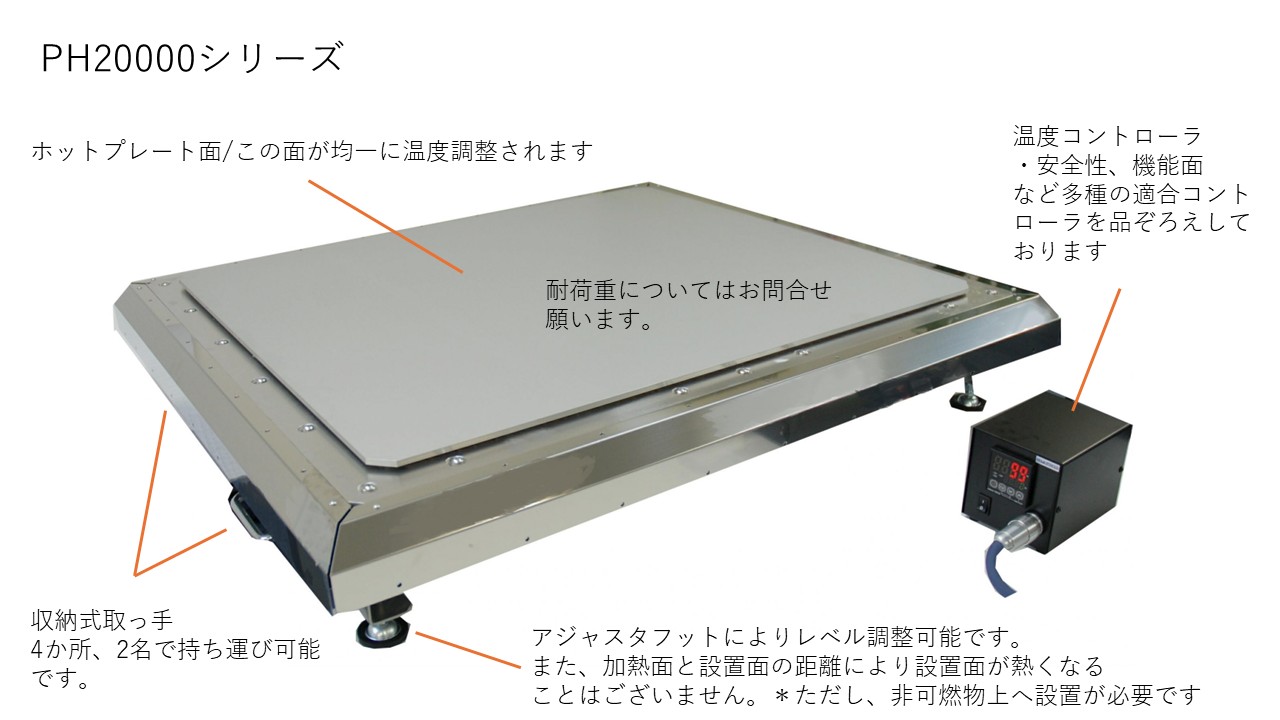

Metric size Large, wide-area hot plate
Large size hot plate over 1m, tabletop installation type
Main applications
Large glass substrates, heat insulation evaluation, heat transfer evaluation For heating and heat treatment of large size materials
high efficiency
High-precision temperature control can be achieved by combining PCC100G and PCC400 digital temperature controllers and PCC107 programmable temperature controller.
structure
Thin structure hot plate for large area and power-saving structure. The weight allows for tabletop installation.
safety
THE HEATER DESIGN, WIRING STRUCTURE, AND OTHER SAFETY FEATURES HAVE BEEN TAKEN INTO CONSIDERATION. A CONTROLLER/PCC110 WITH OVER-TEMPERATURE MONITORING FUNCTION IS ALSO AVAILABLE.
customizability
In addition to standard products, we can also produce custom sizes.
List of models
 |
|
|
|
|
|---|---|---|---|---|
model number |
PH20500 New! |
PH20650 New! |
PH20807 |
PH20850 New! |
Load-bearing type |
PH20500-H New! |
PH20650-H New! |
PH20807-H New! |
PH20850-H New! |
Max. temperature |
150℃ | 150℃ | 150℃ | 150℃ |
Plate size |
500 x 500mm | 650 x 650mm | 800 x 700mm | 850 x 850mm |
DRAWING (PDF) |
||||
Load capacity without option*1 |
Load capacity 20kg | Load capacity 30kg | Load capacity 40kg | Load capacity 40kg |
Load-bearing type -H *1 |
Load capacity 50kg | Load capacity 85kg | Load capacity 100kg | Load capacity 140kg |
DRAWING (PDF) |
||||
Plate Material |
Aluminum alloy/anodized | |||
Supply voltage |
AC200V | |||
Recommended temperature Controller*2 |
PCC110 | ←arrow (mark or symbol) | ←arrow (mark or symbol) | ←arrow (mark or symbol) |
1 Load capacity: Equally distributed load. For concentrated load and offset load, please inquire separately. The load capacity does not mean that the workpiece of that weight can reach the maximum temperature.
2 Recommended controller: For large-area hot plates, a controller with a double-sensor type monitoring function is recommended. Other types of controllers can be selected. Digital Temperature Controller PCC Series
List of models
|
|
 |
|
|
|---|---|---|---|---|
model number |
PH20100 |
PH20100 |
PH20125 |
PH20150 |
Max. temperature |
150℃ | 150℃ | 120℃ | 120℃ |
Plate size |
1000 x 1000mm | 1250 x 600mm | 1250 x 1000mm | 1500 x 1250mm |
Load capacity without option*1 |
Load capacity 40kg | Load capacity 40kg | Load capacity 40kg | Load capacity 40kg |
Load-bearing type -H *1 |
Load capacity 200kg | Load capacity 150kg | Load capacity 150kg | Load capacity 150kg |
DRAWING (PDF) |
||||
Plate Material |
Aluminum alloy/anodized | |||
Supply voltage |
AC200V | |||
Recommended temperature Controller*2 |
PCC411 | ←arrow (mark or symbol) | ←arrow (mark or symbol) | ←arrow (mark or symbol) |
1 Load capacity: Equally distributed load. For concentrated load and offset load, please inquire separately. The load capacity does not mean that the workpiece of that weight can reach the maximum temperature.
2 Recommended controller: For large-area hot plates, we recommend a controller with a double-sensor type monitoring function and a leakage breaker. Various other controllers can be selected. Digital Temperature Controller PCC Series
