Ultra High Temperature Firing Furnaces Lineup up to 1000℃ max.
Main applications and features

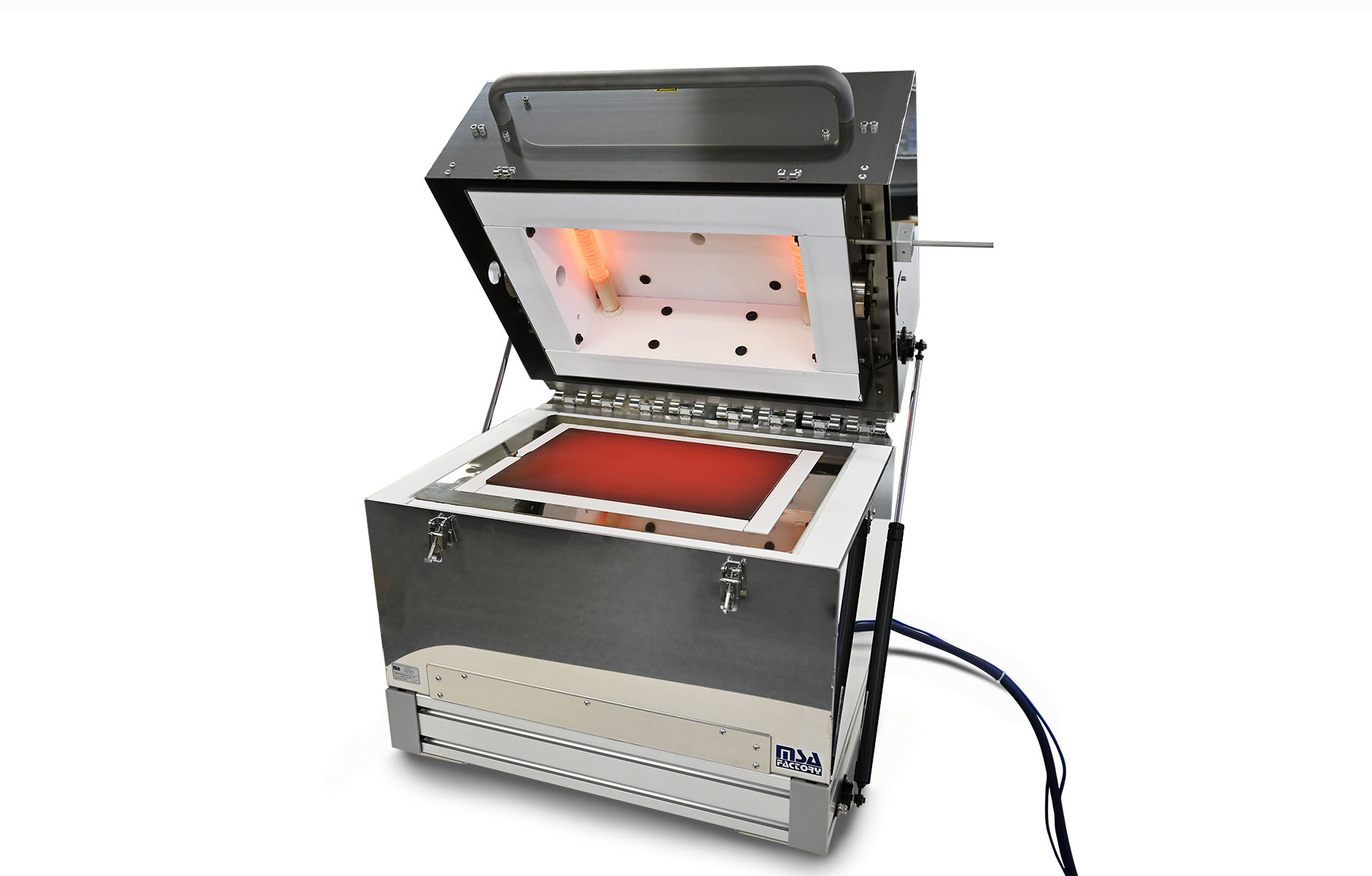

Ideal for material heating, baking, evaluation, and baking of materials. Compared to muffle furnaces that only use air heating, these furnaces heat from the underside (hot plate structure), enabling rapid heating of workpieces. We also offer custom sizes for large furnaces up to 800°C and 1000°C. Quartz bell jars are also available as an option. Quartz bell jars are also available as an option for gas displacement heating of materials.
MSA Factory Customization support based on heating know-how
We combine various expertise in materials (super heat-resistant plates, heat distortion countermeasures, titanium chassis) heater design, heat insulation, thermal radiation, etc. We can customize our products to meet your process and application needs.
High-performance, multi-function temperature controller

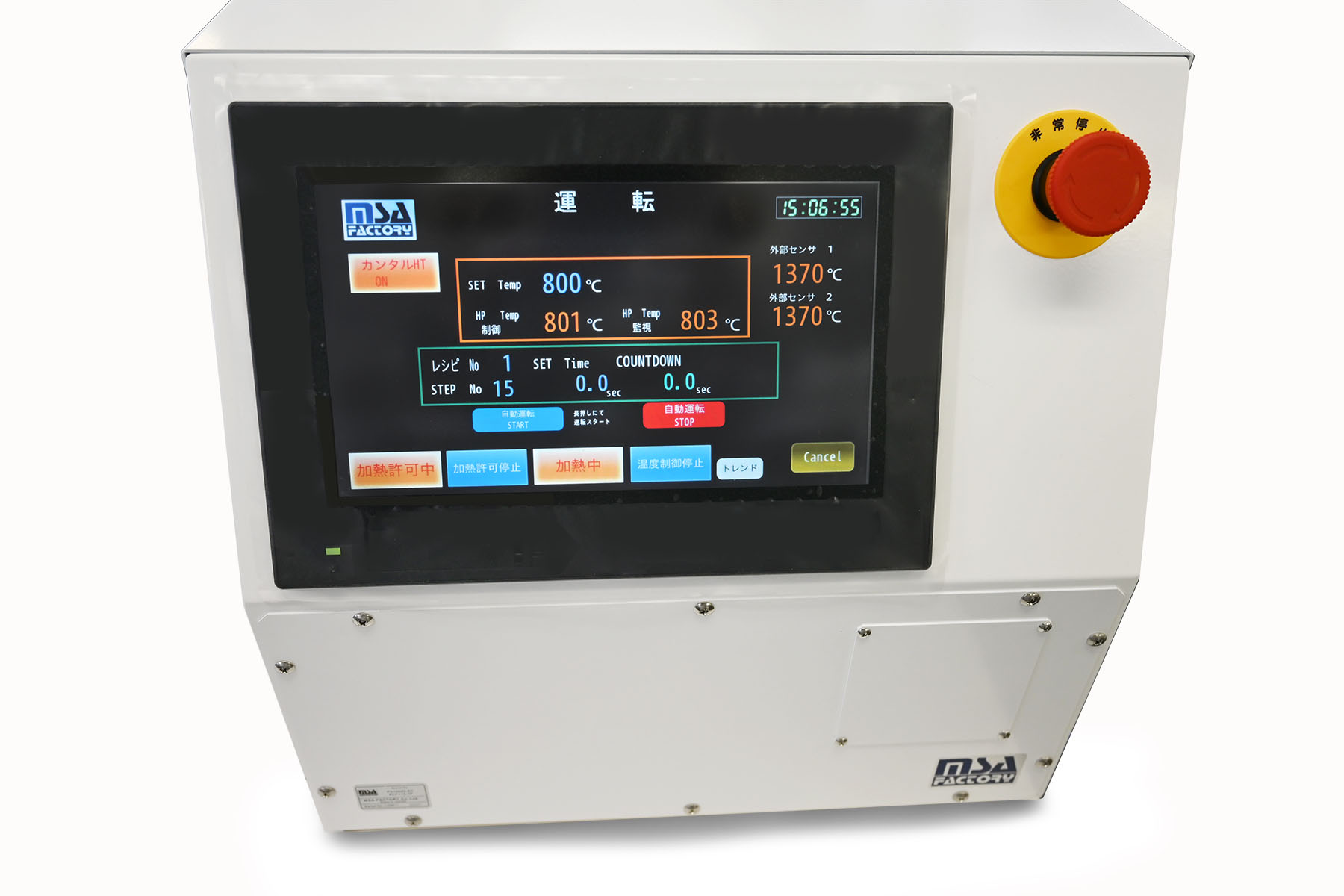

The touch-panel temperature controller (PCC118-TP) provides high-precision temperature control as well as safety monitoring and temperature data acquisition.
safety
THE CONTROLLER (PCC118-W-TP) IS EQUIPPED WITH SAFETY FUNCTIONS THAT INCLUDE AN OVER-TEMPERATURE MONITORING FUNCTION, EMERGENCY STOP FUNCTION, LEAKAGE CURRENT DETECTION FUNCTION, AND LOAD DISCONNECTION FUNCTION.
In addition to the touch panel type temperature controller, temperature controllers with over-temperature controller, etc., can be combined according to your application and budget.
Touch Panel Type Temperature Controller PCC118-TP
Temperature controller with over-temperature function PCC401
Quartz glass bell jar: A workpiece is placed in a quartz glass bell jar, gas displacement is performed, and heating is possible.
List of models
|
|
|||
|---|---|---|---|---|
model number |
MV8031 |
MV8032 |
MV10031 |
MV10032 |
Max. temperature |
800℃ | 1000℃ | ||
Plate size |
300 x 150 Height 100mm | 300 x 200, height 100mm | 300 x 150 Height 100mm | 300 x 200, height 100mm |
reheat |
Super Heat-Resistant Alloy Hot Plate | |||
Supply voltage |
AC200V | AC200V | ||
option |
Quartz glass bell jar,
Inert gas atmosphere, Bell jar handling jig |
|||
Applicable Temperature
|
PCC410 (temperature controller type), PCC118-TP (touch panel type) | |||
forte |
Space heating + hot plate structure
Heating to high temperature |
Space heating for ultra-high temperatures up to 1000°C + hot plate structure heats to high temperatures |
||
