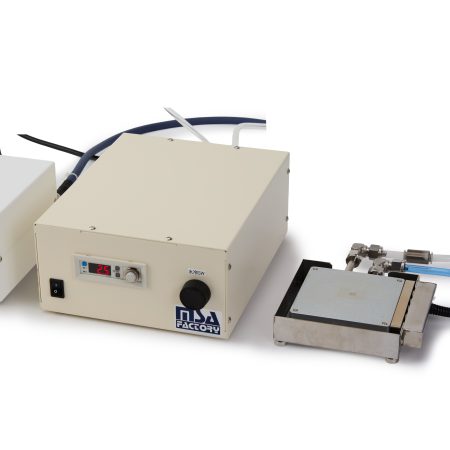

High-temperature hot plate 300°C lineup with thin hot plate structure
Main applications
材表研究・評価、無機材料熱処理、耐熱性評価、ベーキング等 水冷機能付きですので、加熱温度から、急速にプレート面を下げることが可能です。
MSA FACTORY HEATING KNOW-HOW
We combine various expertise in materials (super heat-resistant plates, heat distortion countermeasures, titanium chassis) heater design, thermal insulation, thermal radiation, etc.
高温からの急速水冷
300℃から50℃まで、約５０secで降温可能です。(10L/min程度のチラー使用）また、専用コントローラにて、水冷モジュール内の水抜きいたします。
high efficiency
High-precision temperature control is available by combining PCC100G, PCC400, and PCC107. ( Selection guide PCC100_SG )
safety
THE HEATER DESIGN, WIRING STRUCTURE, AND OTHER SAFETY FEATURES HAVE BEEN TAKEN INTO CONSIDERATION. A CONTROLLER/PCC110 WITH OVER-TEMPERATURE MONITORING FUNCTION IS ALSO AVAILABLE.
List of models
 |
|
|
|
|
|---|---|---|---|---|
model number |
PA3008-RK New! |
PA3010-RK New! |
PA3012-RK New! |
PA3015-RK New! |
Max. temperature |
300℃ | |||
Plate size |
80 x 80mm | 100 x 100mm | 120 x 120mm | 150×150ｍｍ |
Plate Material |
Aluminum alloy, anodized | |||
冷却方式 |
水冷/空冷併用 専用コントローラ OP:PCC300CL | |||
必要ユーティリティー |
冷却水循環装置、圧縮エアー | |||
Temperature distribution |
±1.5% | |||
Supply voltage |
AC100V | |||
Temperature Controller |
PCC100G,PCC100G2,PCC107 Others OP | |||
forte |
High performance and low cost with high temperature hot plate by using aluminum alloy | |||
Main body price*. |
- | - | - | - |
A separate controller is required. Please select a controller according to the application and functions.
