Ceramic heater high speed heating hot plate 400℃ lineup

Main applications

Material surface research and evaluation, inorganic material heat treatment, heat resistance evaluation, baking, solder process evaluation, etc.

MSA FACTORY HEATING KNOW-HOW

We combine various expertise in materials (super heat-resistant plates, heat distortion countermeasures, titanium chassis) heater design, thermal insulation, thermal radiation, etc.

high efficiency

By combining with the digital temperature controller/PCC100G, PCC400, or the programmable temperature controller/PCC107, highly accurate temperature control can be achieved. Various options are available, including PC communication and safety functions. ( Selection guide PCC100_SG ) The optional exclusive software/PCS100-4ch can be used to connect to a PC via a USB cable. Temperature log data can be acquired, and temperature profiles can be created and managed easily. PCS100-4ch

safety

The heater design, wiring structure, etc. are designed with safety in mind. We also offer a controller/PCC110 with an overheating monitoring function. Please refer to the Small Heat Stage General Catalog 2020. PCS100-4ch

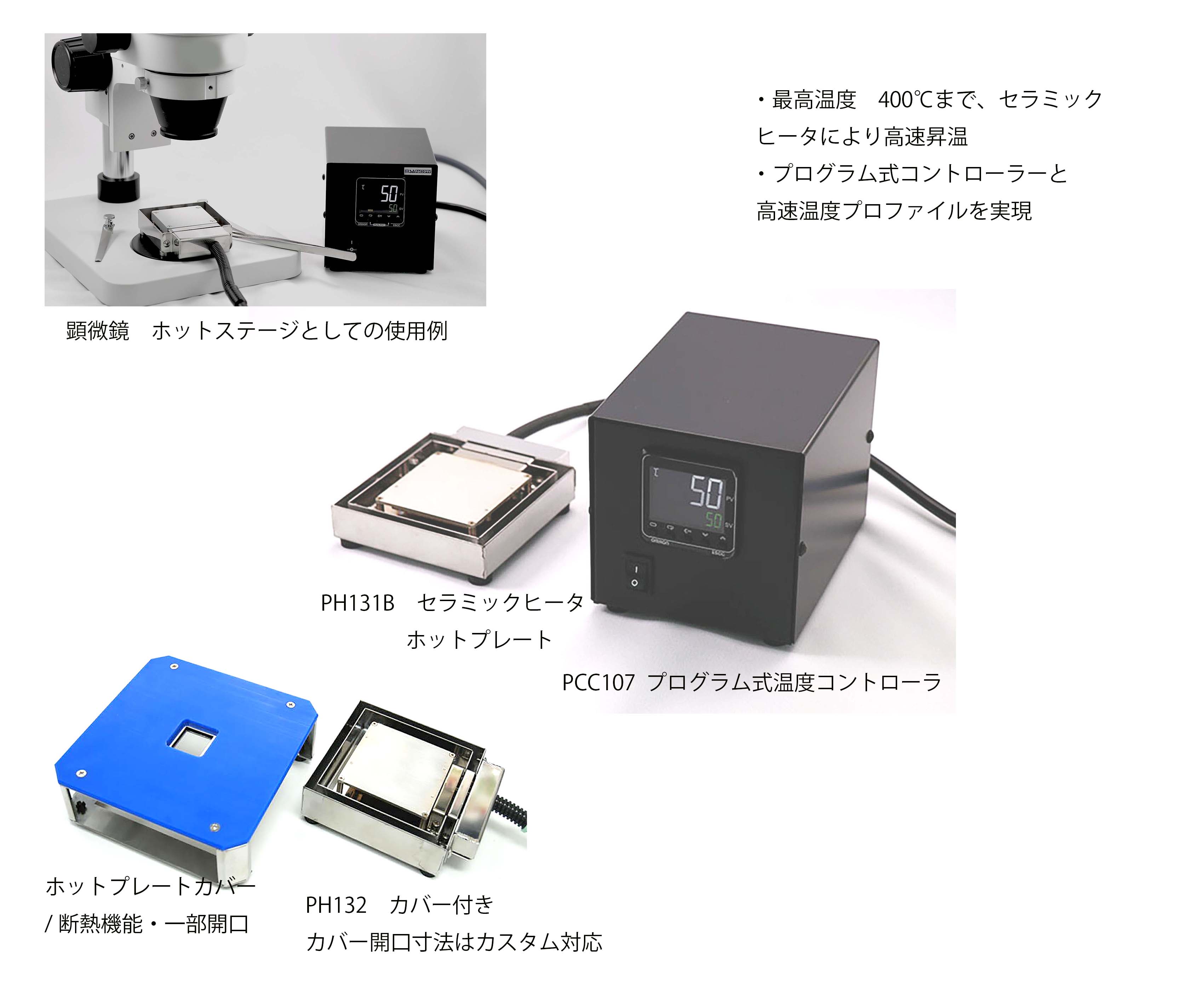

model number	PH131B	PH132
Max. temperature	400℃
Plate size	60 x 60mm	60 x 60mm
Plate Material	Aluminum alloy, anodized
Temperature distribution	±1.5%
Supply voltage	AC100V
option		With cover, opening size
Temperature Controller	PCC100G (constant temperature), PCC107 (program) , other options
forte	Ceramic heater for rapid heating, High speed temperature profile in combination with digital programmable controller	PH131 cover included, The cover opening size can be customized.
List price (excluding tax)	PCC100G set - PCC107 Programmable Set -	PCC100G set - PCC107 Programmable Set -
