High-speed heating up/down hot plate up to 350°C
Main applications
Hot plate with high-density heater capacity design and built-in cooling fan High-speed temperature rise 6°C/sec High-speed temperature fall 3°C/sec and high-speed temperature rise/fall stage with cooling by water-cooled Peltier
Digital Programmable Temperature Controller
Connects to a dedicated digital program temperature controller with a one-touch connector. Highly accurate temperature profile control can be performed immediately with simple operation.
In addition to high-speed temperature increase, low rate and long-time temperature decrease are also available.
PC connection software (PCS100-4CH) Option
PC connection software allows connection of the temperature controller to a PC via USB port. Temperature profile creation, management, and temperature data logging can be performed on a PC. Operation of the temperature controller is simplified.
PCS100-4ch Catalog PCS100-4ch
Click here for temperature controller selection guide PCC100_SG
List of models
 |
 |
|
|---|---|---|
model number |

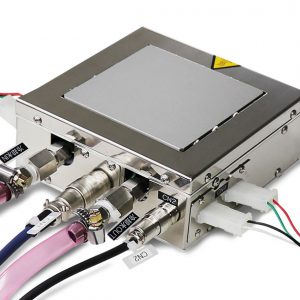

PJ-102 |
PH250 |
Temperature range |
+10~+175°C | RT-350°C |
Plate size |
100 x 100mm | 85 x 65mm |
Plate Material |
aluminum alloy | aluminum alloy |
Supply voltage |
AC100V | AC100V |
Compatible Temperature Controller |
PCC107-PED (Peltier temperature controller) | PCC107 (with fan control) |
forte |
Fast temperature rise, fast temperature fall Water-cooled Peltier | Fast temperature rise and fall Equipped with air-cooling fan for cooling |
Temperature profile |
Temperature rise rate 0.05~3°C/sec. Temperature fall rate 0.05~2°C/sec. Stable temperature rise and fall performance over the entire temperature range.
|
Temperature rise rate 0.05°C~6°C/sec Temperature fall rate 0.05°C~3°C/sec Maximum temperature rise rate at high temperature range 3°C/sec, maximum temperature fall rate at low temperature range 1°C/sec |
