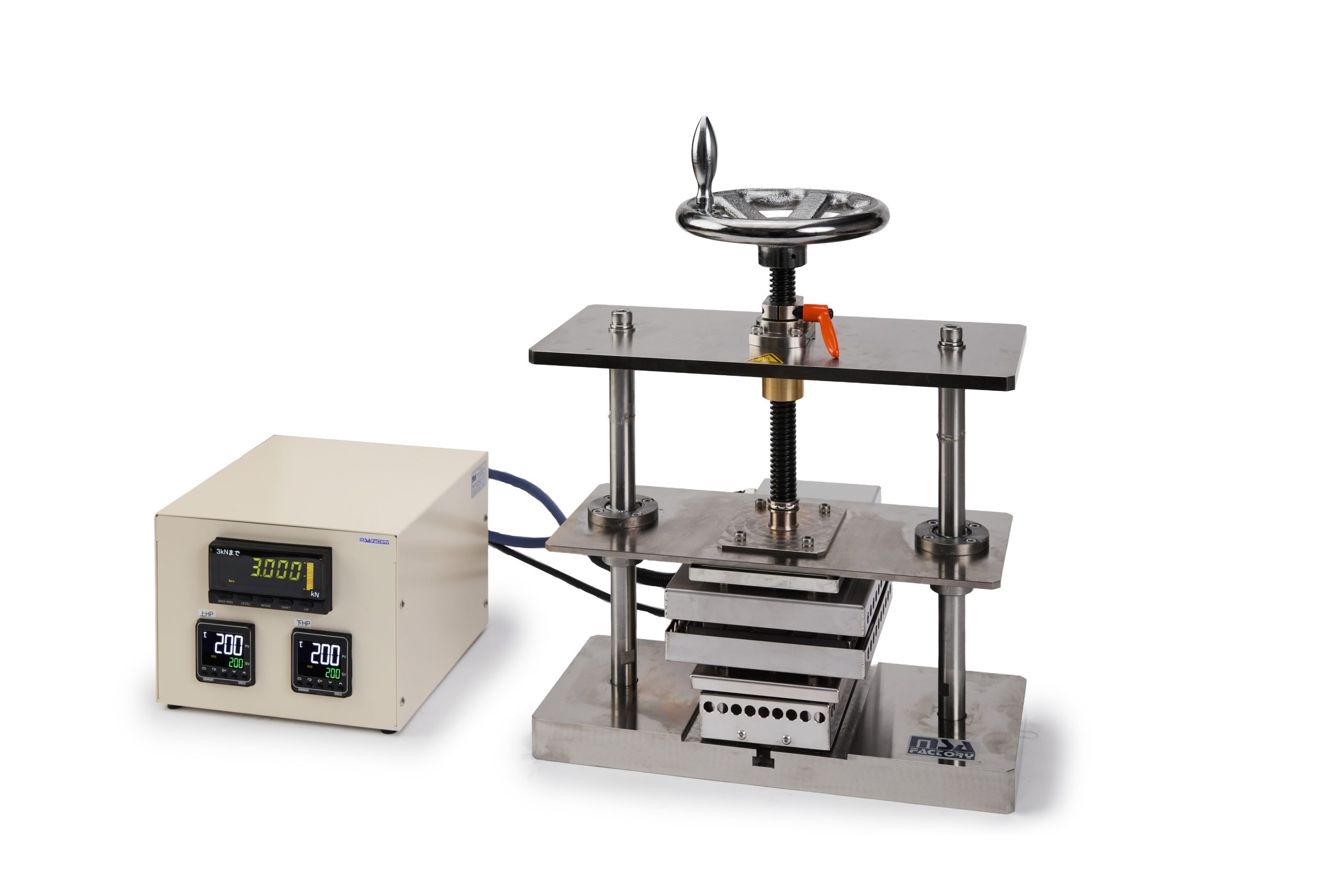

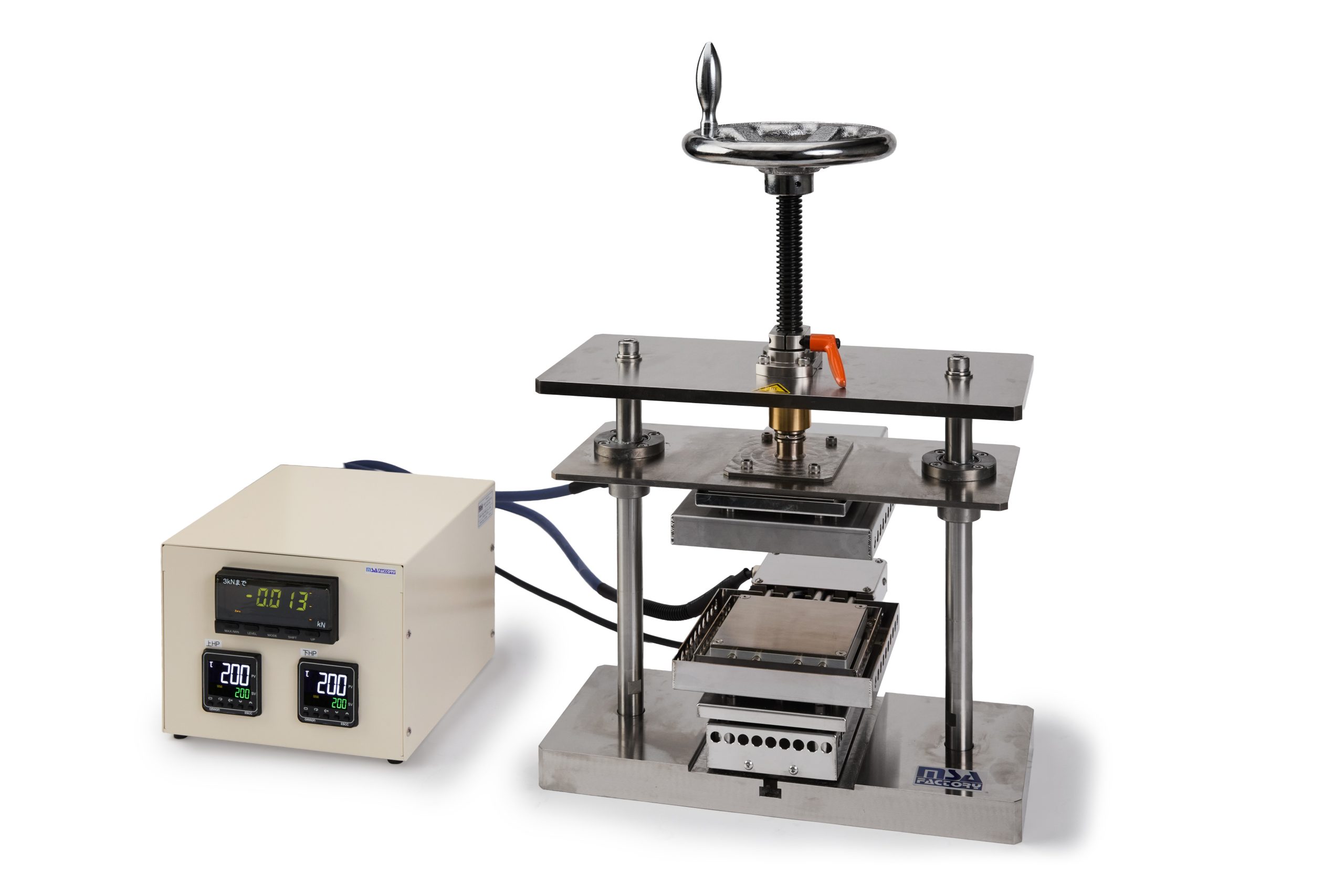

High-temperature hot press products by manual press, inexpensive variations, and molds are available as options.

High temperature

High temperature: Selectable from 200°C, 400°C, and 600°C.

Mold Shape

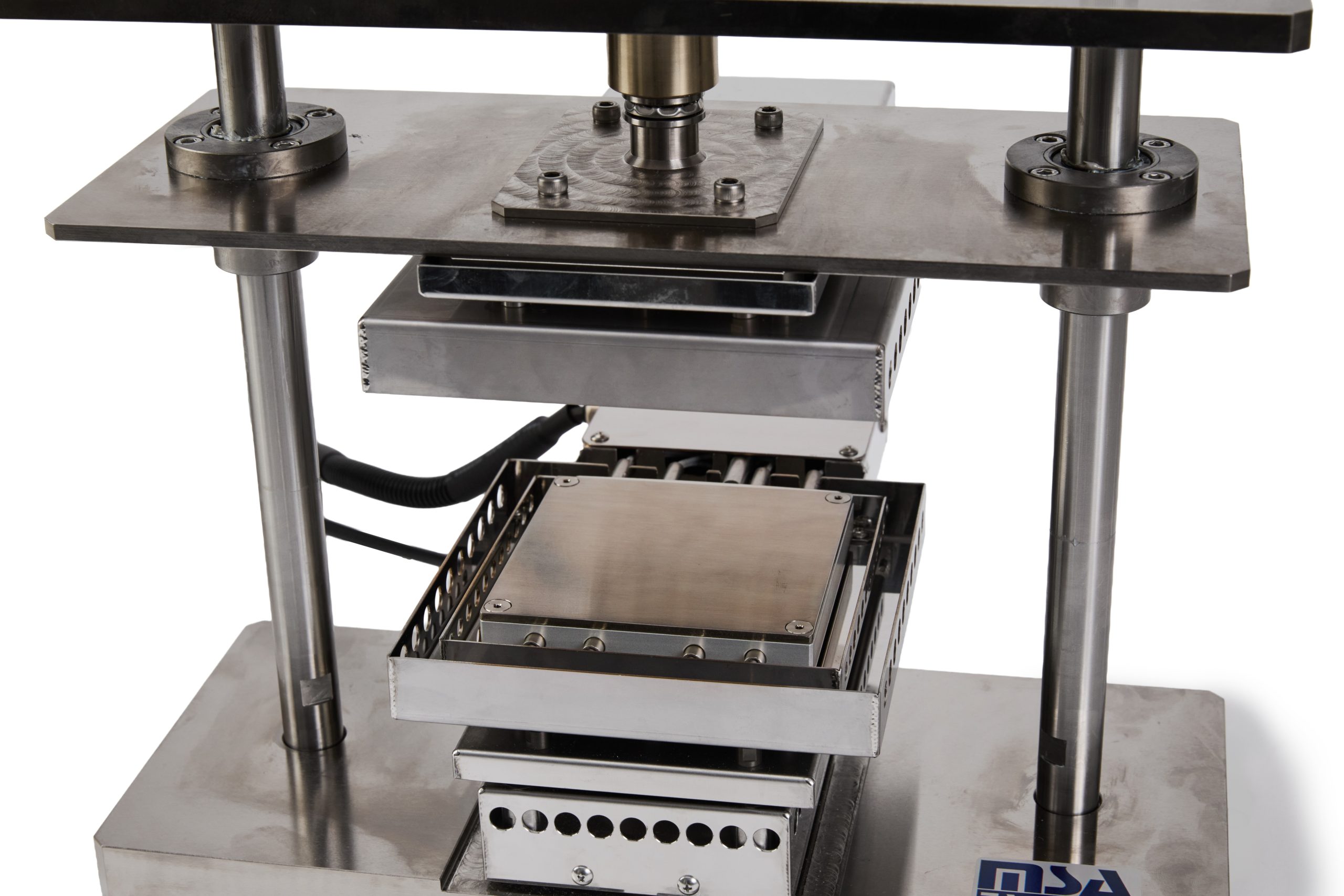

In addition to the parallel-plate type, a furnace body structure suitable for press molding of powders and other materials can also be mounted. Custom mold sizes, etc., can also be manufactured.

variation

We have a variety of hot press products: hand, digital servo, hydraulic press, and other custom-made types. Please refer to the Hot Press General Catalog.





Model List Handle Type Hot Press

model number	HE201-HD	HE401-HD	HE601-HD
Max. temperature	200℃	400℃	600℃
Plate size	100 x 100mm
Maximum load	1500N
Plate Material	ALUMINUM/SUS	ALUMINUM/SUS	Copper/Super heat resistant alloy
Supply voltage	AC100V
load cell	Load cell (indicator) standard (Custom-made without load cell is also available.)
load carrying	However, it does not follow load changes due to sample deformation, etc.
specification drawing	EH23_HOT PRESS SPECIFICATION B
