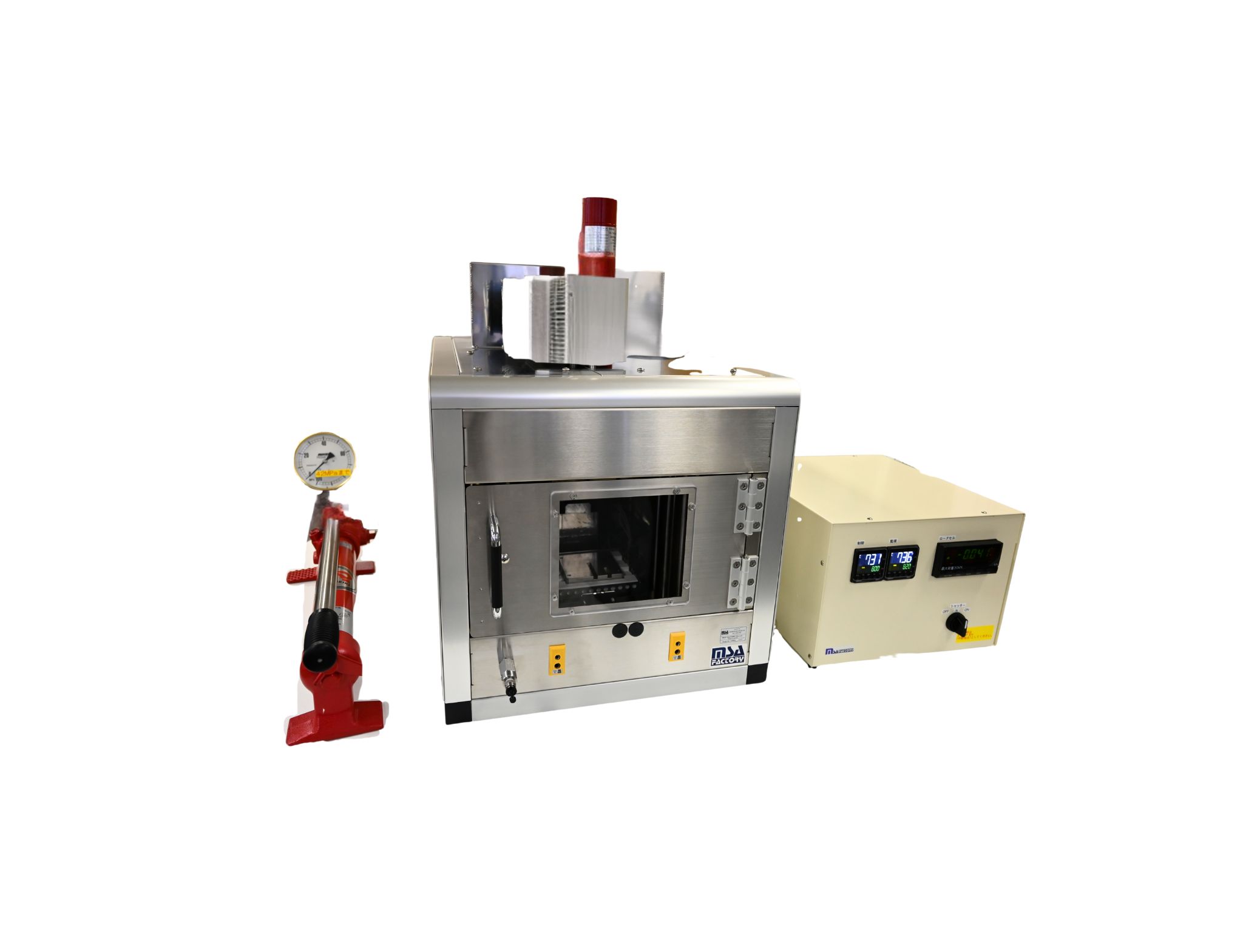

Ultra-high temperature hot presses Our know-how in hot plates has enabled us to offer a lineup with temperatures up to 900°C.
High thrust by hydraulic press
HIGH THRUST HOT PRESS USING HYDRAULIC PRESS CYLINDER, THRUST OF 300KN, 100KN, 60KN, 30KN, AND CUSTOM ORDERS AVAILABLE.
Parallel Plate Type / Furnace Body Type / Mold Mounted Type
Three types of hydraulic hot presses are available: parallel plate type, furnace body (for powder molds) type, and mold (custom mold) mounted type. You can select the press that best suits your process.
high efficiency
Applying the technology cultivated in high-temperature hot plates to hot presses. Lineup up to high temperatures that were not available in conventional hot presses.
safety
Safety shutters and over-temperature protection functions are incorporated in the controller. Please refer to the Hot Press General Catalog.
List of models
 |
|
|
 |
|
|---|---|---|---|---|
model number |
HE6030-K, KH |
HE6060-K, KH |
HE3020-K, KH |
HE10030 |
type |
Desktop installation | Desktop installation | Desktop installation | Floor installation |
Temperature range |
Room temperature to 600℃ | Room temperature to 600℃ | Room temperature to 400°C | Room temperature to 300°C |
Plate size |
80 x 80mm | 150 x 150mm | 300×300mm | |
Plate Material |
heat-resistant superalloy | ALUMINUM ALLOY + SUS | heat-resistant alloys | |
load |
30KN | 60KN | 20KN | 100KN |
controller |
-K: No load cell (hydraulic pressure gauge)
-KH: with load cell |
Special box,
With 4 in-plane load cells |
||
Supply voltage |
AC100V | AC200V | ||
Product size |
W28×D20×H565mm | - |
W750×D500×
H1600mm
|
|
Product weight |
Approximately 35kg | Approx. 45kg | - | Approx. 100kg |
|
 |
|
 |
|
|---|---|---|---|---|
model number |
HE10400 |
HEG1530 |
HEG3030 |
HEG5030 |
type |
Floor installation | TABLETOP INSTALLATION/GB INSTALLATION | ||
Temperature range |
Room temperature to 400°C | Room temperature to 300°C | Room temperature to 300°C | Room temperature to 300°C |
Plate size |
400 x 400mm | 100 x 100mm | 100 x 100mm | 100 x 100mm |
Plate Material |
heat-resistant superalloy | |||
load |
100KN | 150KN | 300KN | 500KN |
controller |
Special box,
In-plane 4-point load cell
With
|
With load cell | ||
Supply voltage |
AC200V | AC100V | ||
Product size |
W750×D500×
H1600mm |
- | - | - |
Product weight |
Approximately 250kg | - | - | - |
 |
|
|
|
|
|---|---|---|---|---|
model number |
HEK10030 |
HEK10040 |
HEK20030 |
HEK15040 |
type |
Floor installation | |||
Temperature range |
Room temperature to 400°C | Room temperature to 300°C | Room temperature to 400°C | Room temperature to 300°C |
Plate size |
300×300mm | 400×400mm | 300×300mm | 400 x 400mm |
Plate Material |
ALUMINUM + SUPER HEAT-RESISTANT ALLOY (OR SUS) | |||
load |
100KN | 100KN | 200KN | 200KN |
controller |
Panel type, dedicated controller | |||
Supply voltage |
AC200V, φ3 (or single phase) | |||
Product size |
W690×D500×H1500mm | |||
Product weight |
Approximately 400 kg | |||
