HIGH PRECISION DIGITAL TEMPERATURE CONTROLLER PCC SERIES
High-precision temperature control is achieved with the MSA Factory digital controller.
WE CAN HANDLE VARIOUS TEMPERATURE CONTROL APPLICATIONS INCLUDING HIGH PRECISION HOT PLATES AND HEAT BLOCKS. HOT PLATES AND HEAT BLOCKS ARE SHIPPED WITH PID PARAMETERS TUNED. NO TROUBLESOME SETTINGS ARE REQUIRED AFTER INSTALLATION.
high efficiency
HIGH-PRECISION TEMPERATURE CONTROL CAN BE ACHIEVED BY COMBINING PCC100G AND PCC400 DIGITAL TEMPERATURE CONTROLLERS AND PCC107 PROGRAMMABLE TEMPERATURE CONTROLLER.
versatility
COMPATIBLE WITH ALL MSA FACTORY HOTPLATES. DIFFERENT MODEL NUMBERS CAN BE USED WITH DIFFERENT HOTPLATES BY REPLACING THE CONNECTORS. (HOT PLATES WITH DIFFERENT POWER SUPPLY CAPACITY TYPES ARE NOT COMPATIBLE. (IT IS NECESSARY TO RE-SET PARAMETERS SUCH AS PID FOR HIGH PRECISION USE.)
multifunction
It has various temperature control functions such as PC communication. For more information about the software, please click here.
safety
The heater design, wiring structure, and other safety features are designed with safety in mind. See PCC100_SG.
cable connector
To connect the hot plate, simply insert it into the connector. No connection to a terminal block is required. The standard cable length is 1 m, but various cable lengths such as 2, 3, and 5 m are available.
Enclosure coating
White and black types are available. High durability powder coating ensures minimal deterioration even after many years of use. (Models and custom types may be coated normally.)
1 Year Warranty Support
Including the hot plate, we offer a 1-year warranty. In the event of a malfunction, we will repair the product.
Standard Stationary control / Constant temperature control with high accuracy
 |
 |
|||
|---|---|---|---|---|
model number |
PCC100G |

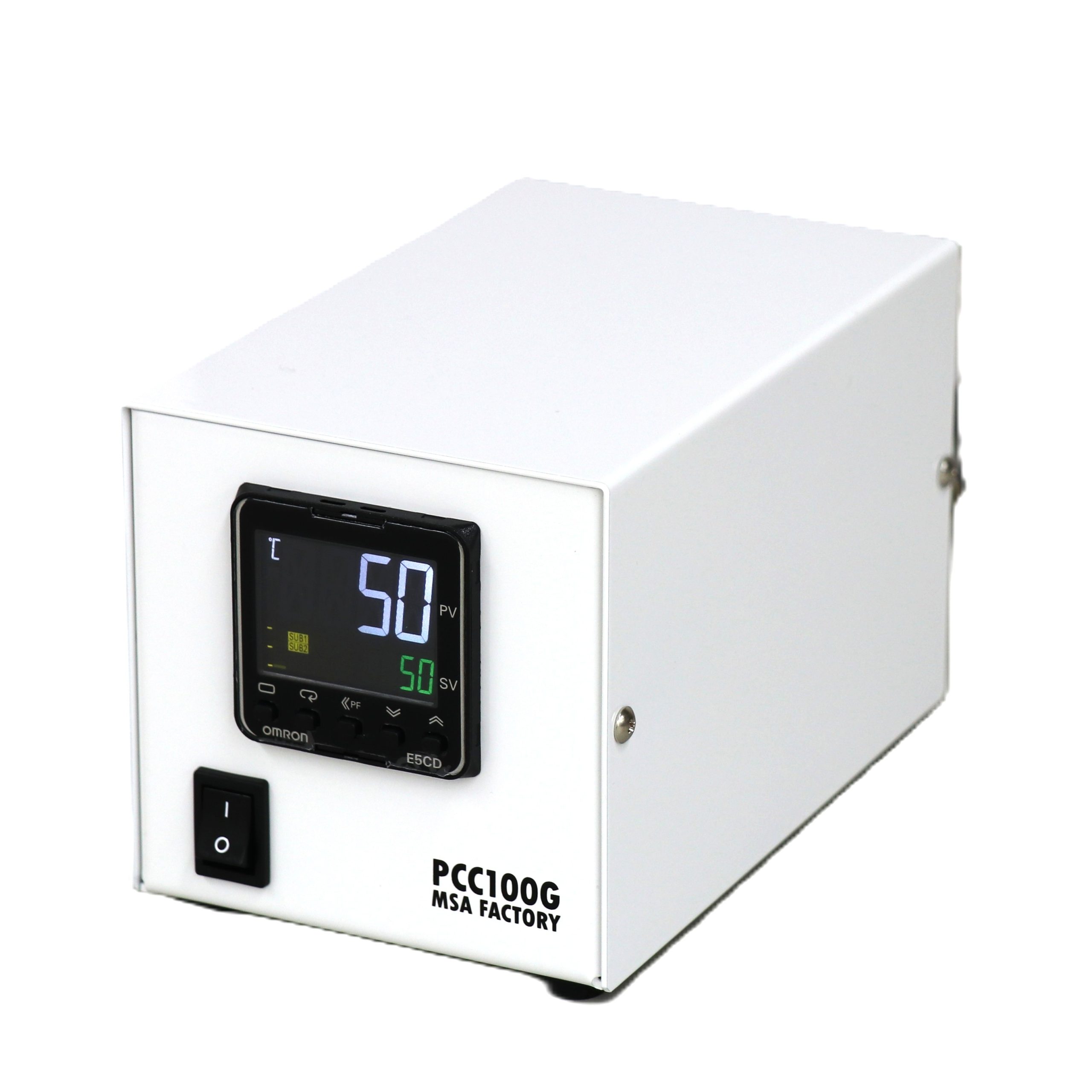

PCC100G2 New |
||
feature |

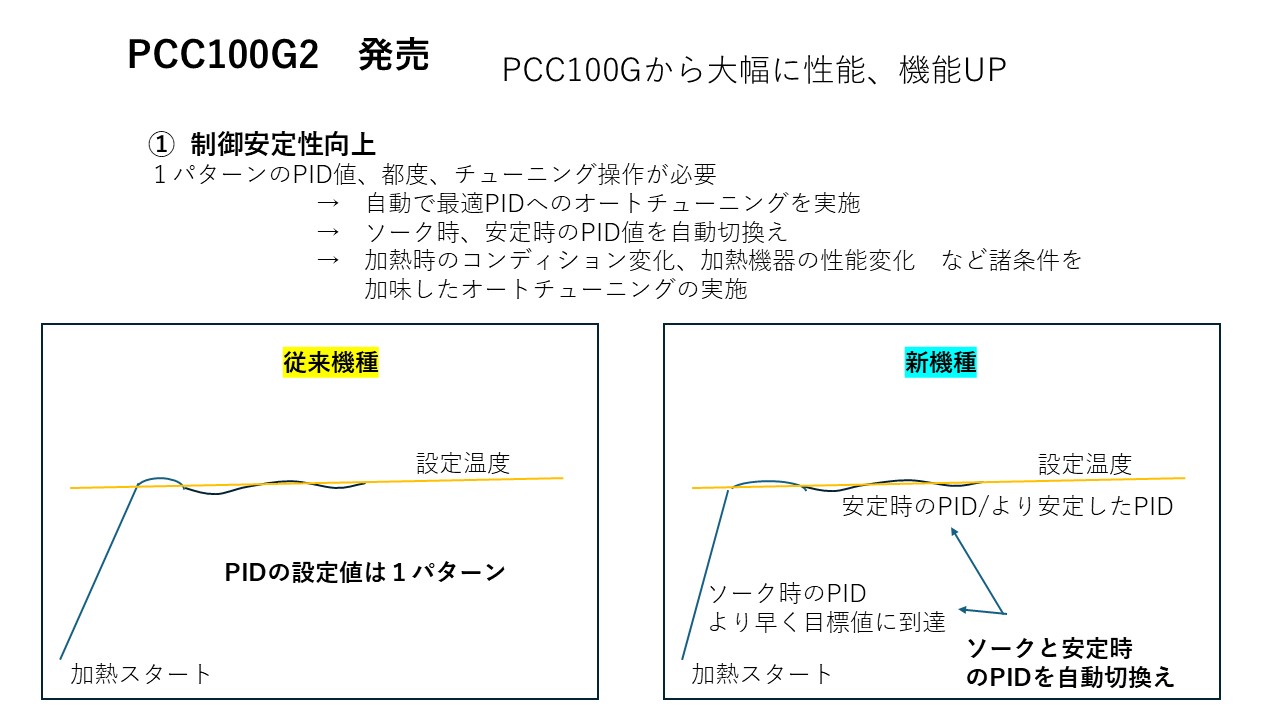

Stable control by suppressing overshoot and fluctuation due to external disturbances by proactive function | STATIONARY CONTROLLER, TUNING AUTO-OPTIMIZATION WITH AI ALGORITHM | ||
temperature setting unit |
1°C or 0.1°C (default 1°C, 0.1°C by changing setting) | |||
Safety features |
Glass tube fuses | |||
Maximum load capacity |
-10A(10A), -20A(20A) | |||
Connection with hot plate |
One-touch connector cable PCC-050, 040, 055 1m (standard) | |||
Serial communication function |
RS-485/OPTION | |||
Software (sold separately) |
PCC100G-com | PCS100-4ch RS-485 is required. | ||
Power supply voltage, power cable |
AC100V (3P outlet cable with GND 1.5m) or 200V (cab cable 2m, OP with plug) | |||
Highly functional program type /Temperature control with high accuracy of temperature profile, with serial communication function
|
 |
 |
||
|---|---|---|---|---|
model number |
PCC107 |
PCC108 |
PCC109 |
|
feature |
Program mode: 8 patterns x 32 segments programmable |
|
|
|
temperature setting unit |
1°C or 0.1°C (default 1°C, 0.1°C by changing setting) | |||
Safety features |
Glass tube fuses | |||
Maximum load capacity |
-10A (10A), -20A (20A) | |||
serial communication |
RS-485/STANDARD EQUIPMENT | |||
Software (sold separately) |
PCS100-4ch | PCC100G-com | ||
Connection with hot plate |
One-touch connector cable PCC-050, 055, 060 1m (standard) | |||
Power supply voltage, power cable |
AC100V (3P outlet cable with GND 1.5m) or 200V (cab cable 2m, OP with plug) | |||
ZZZZZ.
Safety function type With over-temperature function/power cutoff
 |
 |
|
|
|---|---|---|---|
model number |
PCC410 |
PCC110 |
PCC117 |
Type/Function |
High power type, over-temperature detection/ Power shutoff function |
Temperature controller with over-temperature function |
Programmable temperature controller with over-temperature function
|
temperature setting unit |
1°C or 0.1°C (default 1°C, 0.1°C by changing setting) | ||
Safety features (standard) |
Earth leakage circuit breaker, over-temperature (arbitrary temperature) setting function, double sensor | Glass tube fuse, over-temperature (arbitrary temperature) setting function, double sensor | |
Safety features (optional) |
DOUBLE SSR | DOUBLE SSR, EARTH LEAKAGE CIRCUIT BREAKER, CIRCUIT BREAKER | |
Maximum load capacity |
25A | -10A (10A), -20A (20A) | |
Connection with hot plate |
Screwed connector, thermocouple connector Length 1.5m (standard) | One-touch connector cable PCC-050, 055, 060 1m (standard) | |
serial communication |
RS-485/OPTION | RS-485/STANDARD EQUIPMENT | |
Software (sold separately) |
PCS100-4ch * Requires the above RS485. | ||
Power supply voltage, power cable |
200V (cab cable 2m, OP with plug) | AC100V (3P outlet cable with GND 1.5m) or 200V (cab cable 2m, OP with plug) | |
HIGH POWER TYPE SSR TYPE / WITH POWER ADJUSTMENT FUNCTION
 |
 |
|
|---|---|---|
model number |
PCC400 |
PCC100-EX/PCC110EX |
Type/Function |
High power type, power shutdown function | Power adjustment and constant temperature switching type, with over-temperature function |
temperature setting unit |
1°C or 0.1°C (default 1°C, 0.1°C by changing setting) | |
feature |
HIGH POWER SUPPORT UP TO 25A AND 5KW | Temperature control function, constant power (current) dial adjustment, maximum current setting function, load error detection, slow start function included |
Safety features (standard) |
earth leakage circuit breaker | INSTANTANEOUS OVERCURRENT SHUTDOWN, MAXIMUM CURRENT SETTING FUNCTION, LOAD ABNORMALITY DETECTION (WIRE BREAKAGE, ETC.), OVERTEMPERATURE DETECTION (PCC110EX), DOUBLE SENSOR (PCC110EX) |
Maximum load capacity |
25A | 10A, 20A, 30A TYPE |
Connection with hot plate |
Screwed connector, thermocouple connector Length 1.5m (standard) | One-touch connector cable PCC-050, 055, 060 1m (standard) , 30A or more: screw-in connector, thermocouple connector Length 1.5m (standard) |
serial communication |
RS-485/OPTION | |
Software (sold separately) |
PCS100-4ch * Requires the above RS-485 option. | |
Power supply voltage, power cable |
AC100V (3P outlet cable with GND 1.5m) or 200V (cab cable 2m, OP with plug) | |
ADDITIONAL FUNCTION TYPE EXTERNAL SENSOR CONTROL TYPE / WITH FLOWMETER / DC OUTPUT CONTROL
|
 |
 |
|
|---|---|---|---|
model number |
PCC110-SE |
PCC100-FL |
PCC100-DC |
Type/Function |

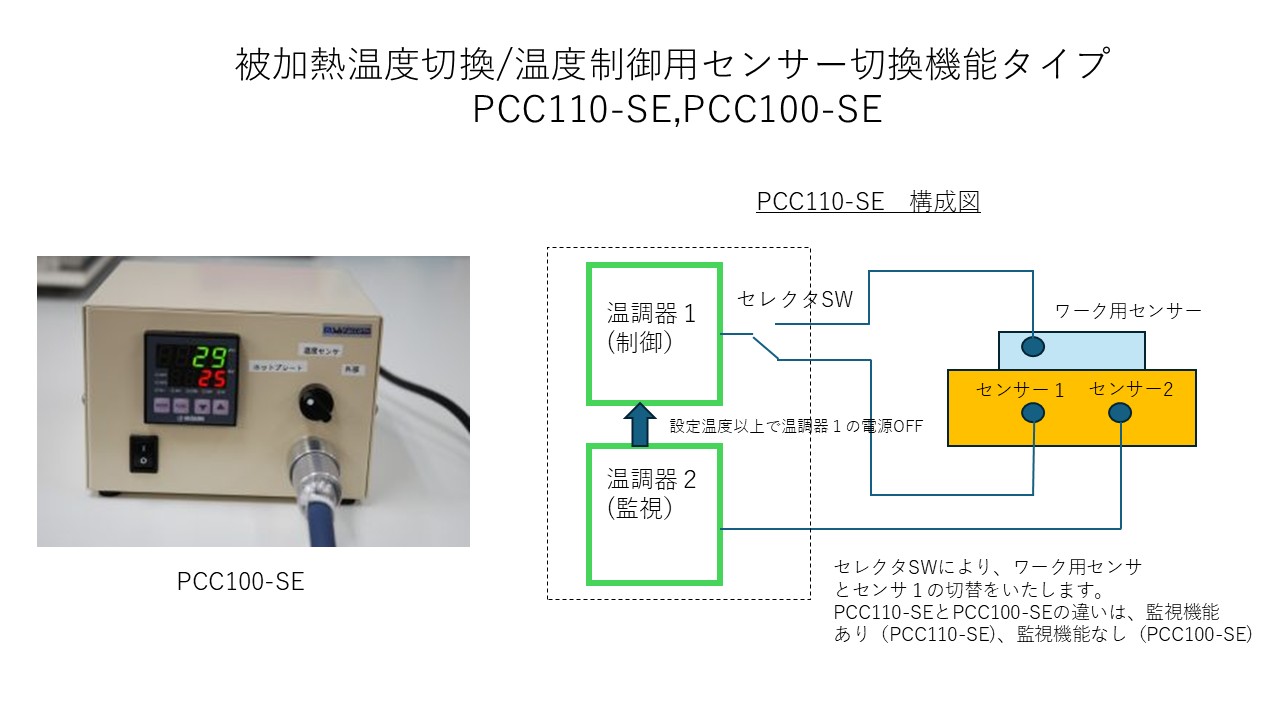

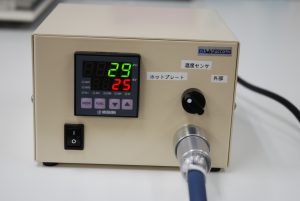

WITH SELECTOR SW, SWITCHING BETWEEN HOT PLATE BUILT-IN SENSOR AND WORKPIECE SENSOR, CONTROL BY WORKPIECE TEMPERATURE IS POSSIBLE | Temperature controller with digital flowmeter (Photo: 3-system control type) |
DIGITAL TEMPERATURE CONTROLLER FOR DC HEATERS
|
temperature setting unit |
1°C or 0.1°C (default 1°C, 0.1°C by changing setting) | ||
Safety features (standard) |
Glass tube fuses | ||
Safety features (optional) |
Over-temperature detection | ||
Maximum load capacity |
-10A (10A), -20A (20A) | ||
Connection with hot plate |
One-touch connector cable PCC-050, 055, 060 1m (standard) | ||
serial communication |
RS-485/OPTION | ||
Software (sold separately) |
PCS100-4ch * Requires the above RS-485 option. | ||
Power supply voltage, power cable |
AC100V (3P outlet cable with GND 1.5m) or 200V (cab cable 2m, OP with plug) | ||
Controller Selection Guide (ver. 4) Please refer to this guide when selecting a controller.
*2: Programmable controller comparison chart PCC107, 108, 109 Programmable controller comparison
Controller General Catalog_web
