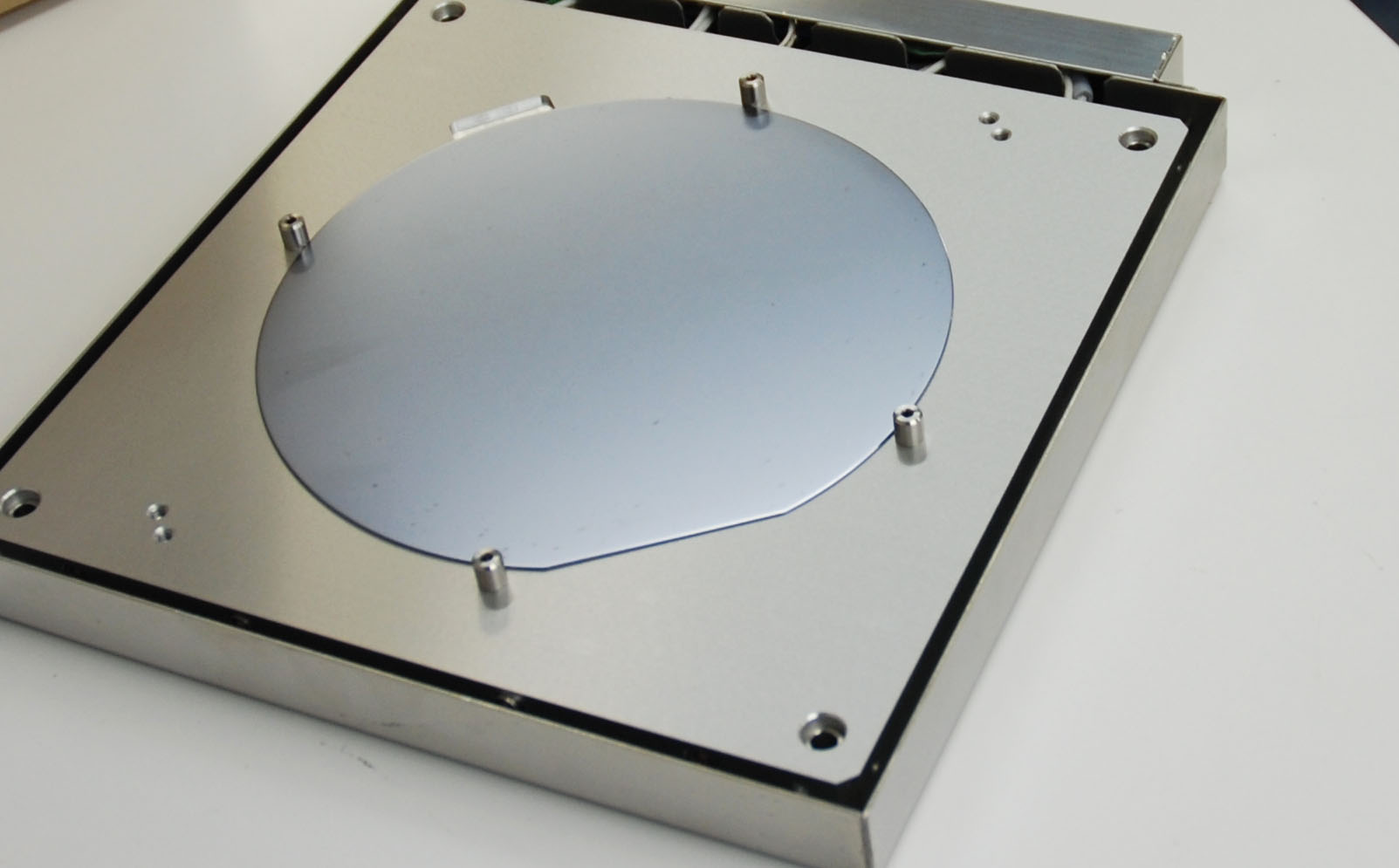

5-inch wafer Positioning pins, Nige processing for tweezers Option

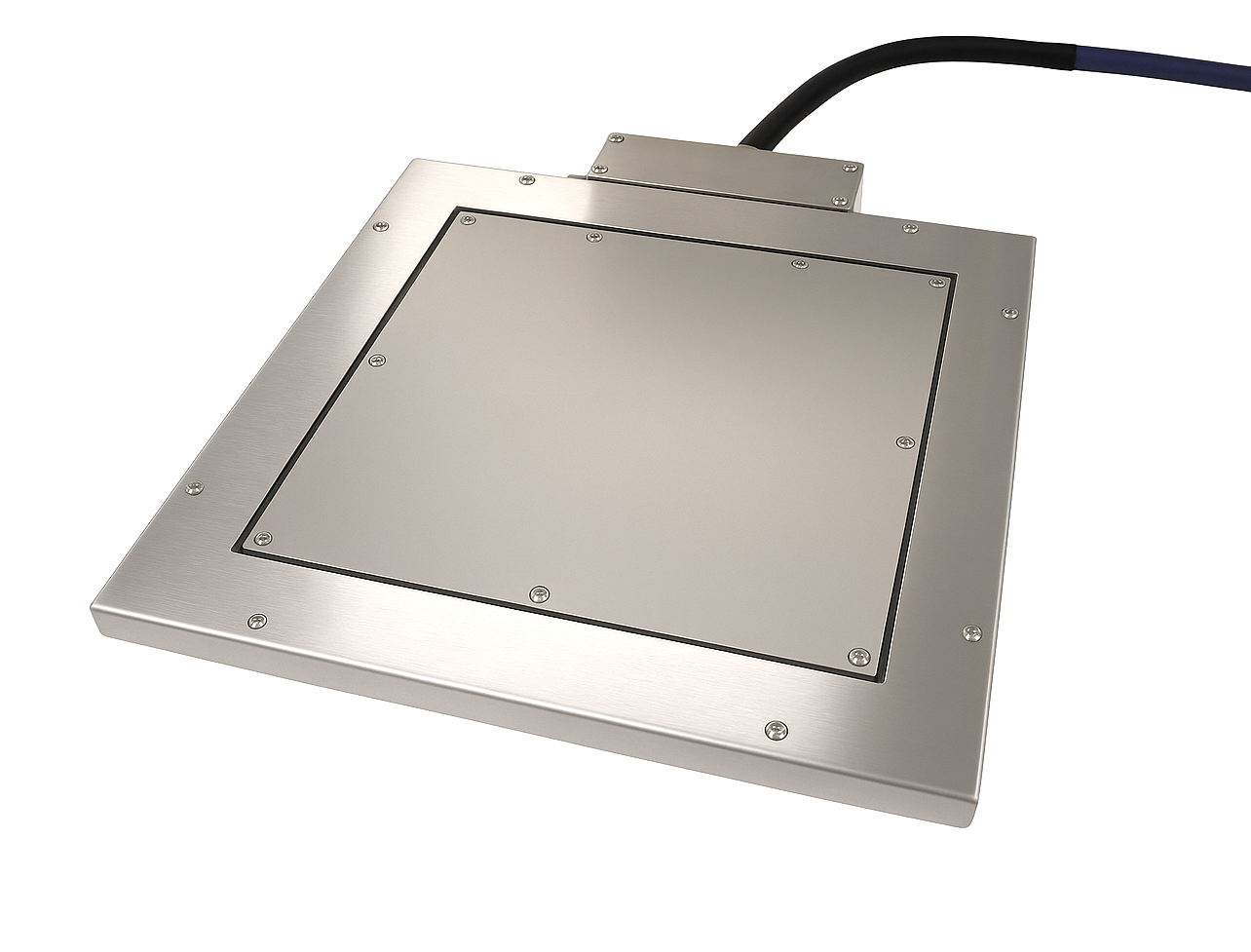

PA2020-C-WP 防水・表面テフロンめっき仕様 防水シリコンゴムカバー
High-temperature hot plate 200°C lineup with thin hot plate structure
Main applications
Material surface research and evaluation, inorganic material heat treatment, heat resistance evaluation, baking, etc.
Ultra-thin, insulated structure PA20 -C Series
薄型構造 PA20シリーズ、超薄型・断熱構造 PA20-Cシリーズ、コントローラ一体型 PA20Ｅｍシリーズの３シリーズ、縦方向、面積方向の省スペース化がはかれます。特に、サイズバリエーションが多数ありますので、アプリケーションに併せた選択が可能です。
Drip-proof construction PA20-C-WP series
A special heat-resistant rubber cover prevents liquids from entering the hot plate due to spills. This prevents equipment malfunction due to liquid spills.
Plate surface protection PA20-C-WP series
Teflon surface treatment reduces surface stains caused by burning. (-C type is aluminum + anodized aluminum)
MSA FACTORY HEATING KNOW-HOW
We combine various expertise in materials (super heat-resistant plates, heat distortion countermeasures, titanium chassis) heater design, thermal insulation, thermal radiation, etc.
high efficiency

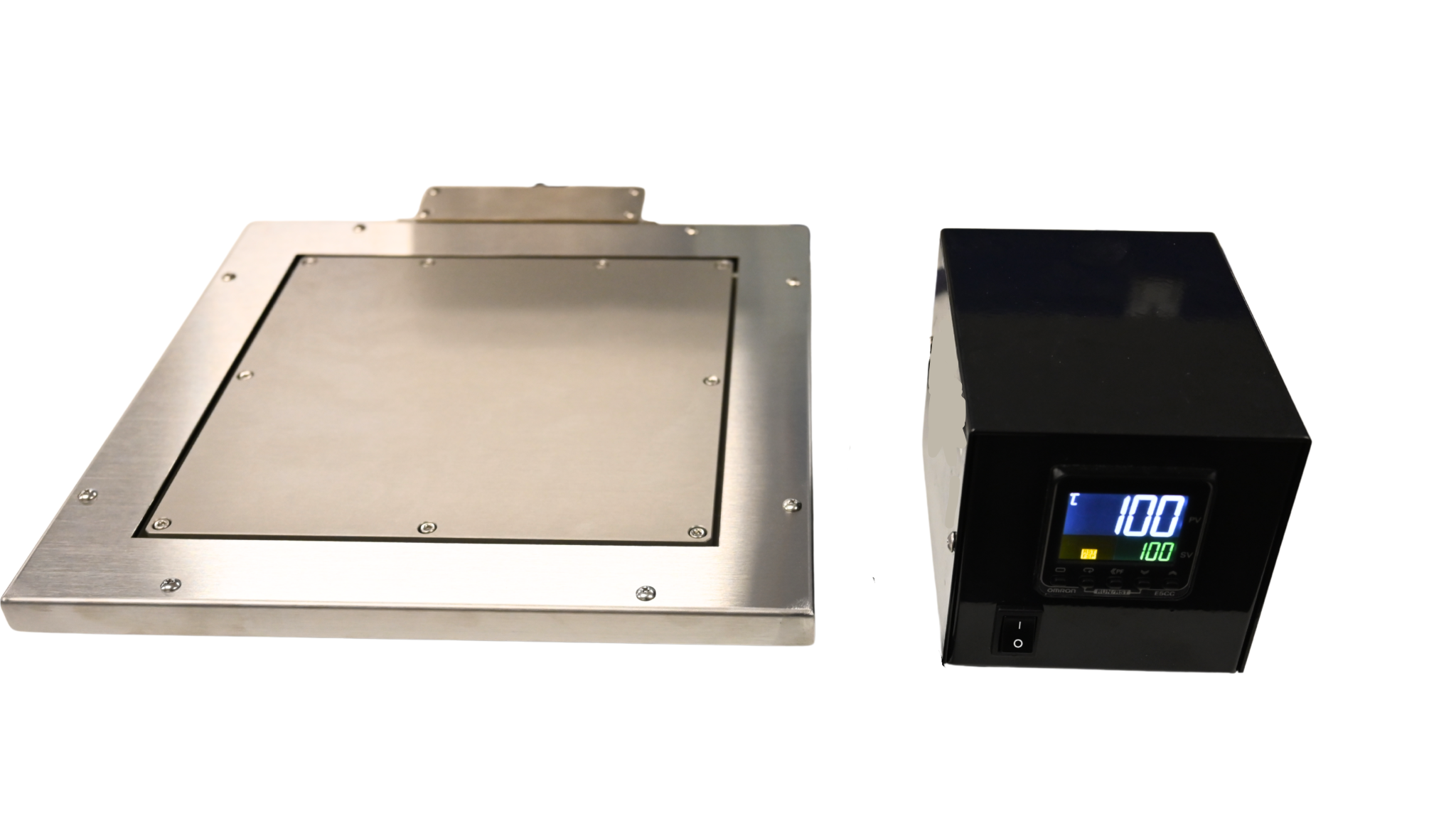

デジタル温度コントローラ／PCC100G2、プログラムタイプ温度コントローラ/PCC107 との組合せにより、高精度の温度制御を実施いたします。PC通信、安全機能など様々なオプションに対応いたします。（選定ガイドPCC100_SG）
safety
THE HEATER DESIGN, WIRING STRUCTURE, AND OTHER SAFETY FEATURES HAVE BEEN TAKEN INTO CONSIDERATION. A CONTROLLER/PCC110 WITH OVER-TEMPERATURE MONITORING FUNCTION IS ALSO AVAILABLE.
Customized and Optional Features
Tweezers nigue for wafer heating, positioning pins, proximity function, etc.
Model list ① Ultra-thin insulated structure PA20-C / Simplified waterproof and surface non-stick PA20-C-WP
| 写真は、PA20-Cシリーズ → |  |
|
|
|
|---|---|---|---|---|
model number |
PA2013-C New! |
PA2015-C New! |
PA2017-C New! |
PA2019-C New! |
Model No./Drip-proof type |
PA2013-C-WP New! |
PA2015-C-WP New! |
PA2017-C-WP New! |
PA2019-C-WP New! |
Max. temperature |
200℃ | |||
Plate size |
130 x 130mm | 150 x 150mm | 175×175mm | 190 x 190mm |
Dimensions* including cable drawer |
255 x 202mm | 275 x 222mm | 300 x 247mm | 315 x 262mm |
feature |
Ultra-thin, bottom hot plate with insulation reinforcement for an installation surface temperature of about 45°C (*When using at 200°C, the installation surface should be noncombustible, and no combustible materials should be placed in the vicinity). | |||
Plate Material |
Aluminum alloy, anodized | |||
Temperature distribution |
±1.5% | |||
Supply voltage |
AC100V | |||
Hot Plate Height |
20mm | |||
Temperature Controller |
PCC100G, PCC107 and other options | |||
forte |
By adopting aluminum alloy,
High performance and low cost at high temperature hot plate |
|||
specification drawing |
-
|
-
|
-
|
-
|
Model List (2) Ultra-thin insulated structure PA20-C / Simplified waterproof and surface non-stick PA20-C-WP
| 写真は、PA20-C-WPシリーズ → |  |
|
|
|
|---|---|---|---|---|
model number |
PA2020-C New! |
PA2021-C New! |
PA2022-C New! |
PA2025-C New! |
Model No./Drip-proof type |
PA2020-C-WP New! |
PA2021-C-WP New! |
PA2022-C-WP New! |
PA2025-C-WP New! |
Max. temperature |
200℃ | |||
Plate size |
200 x 200mm | 215 x 215mm | 225 x 225mm | 250×250mm |
Dimensions* including cable drawer |
325 x 272mm | 340 x 287mm | 350 x 297mm | 375 x 322mm |
feature |
Ultra-thin, bottom hot plate, installation surface temperature of about 45°C with heat insulation reinforcement (*When using at 200°C, the installation surface should be noncombustible and no combustible materials should be placed in the vicinity), C-WP type is a simple waterproof type | |||
Plate Material |
C: Aluminum alloy, alumite treatment, -C-WP: Aluminum alloy, Teflon plating treatment | |||
Temperature distribution |
±1.5% | |||
Supply voltage |
AC100V | |||
Hot Plate Height |
20mm | |||
Temperature Controller |
PCC100G, PCC107 and other options | |||
forte |
By adopting aluminum alloy,
High performance and low cost at high temperature hot plate |
|||
specification drawing |
-
|
-
|
-
|
-
|
Model list (3) Thin type PA20 series
 |
|
|
 |
|
|---|---|---|---|---|
model number |
PA2015 |
PA2020 |
PA2025 |
PA2540 |
Max. temperature |
200℃ | |||
Plate size |
150 x 150mm | 200 x 200mm | 250×250mm | 400 x 200mm |
Plate Material |
Aluminum alloy, anodized | |||
Temperature distribution |
±1.5% | |||
Supply voltage |
AC100V | |||
Hot Plate Height |
42mm | |||
Temperature Controller |
PCC100G, PCC107 and other options | |||
forte |
By aluminum alloy plate
|
|||
specification drawing |
-
|
-
|
-
|
-
|
Model list (4) Controller integrated type
 |
|
|
|
|---|---|---|---|
model number |
PA2015Em |
PA2020Em |
PA2040Em |
Max. temperature |
200℃ | ||
Plate size |
150 x 150mm | 200 x 200mm | 400 x 400mm |
Plate Material |
Aluminum alloy, anodized | ||
Temperature distribution |
±1.5% | ||
Supply voltage |
AC100V | ||
Hot Plate Height |
92mm | ||
Temperature Controller |
Integrated type, space-saving | ||
forte |
Controller integrated structure low-profile type | ||
specification drawing |
- | - | - |
