Ultra-compact, table-top structure constant-temperature chamber
Compact constant-temperature chamber aiming for the world's smallest size Maximum size and weight reduction for installation on a tabletop or automatic (manual) stage
Purpose and Aim of Miniaturization
Captures needs that cannot be met by conventional temperature testers and enables tool jig-out testing. Unprecedented advanced and high-precision testing can be realized.
Realization of temperature uniformity and temperature variation by small air volume
Temperature change is achieved with a small amount of airflow. It eliminates the need for a large compressor and is ideal for temperature tests where vibration or movement due to air volume may affect the test results.
Light Transmittance
One glass window (up to three) is installed. Optical device evaluation and compact temperature test systems can be constructed.
List of models
![]() |
![]() |
![]() |
![]() |
|
---|---|---|---|---|
model number |

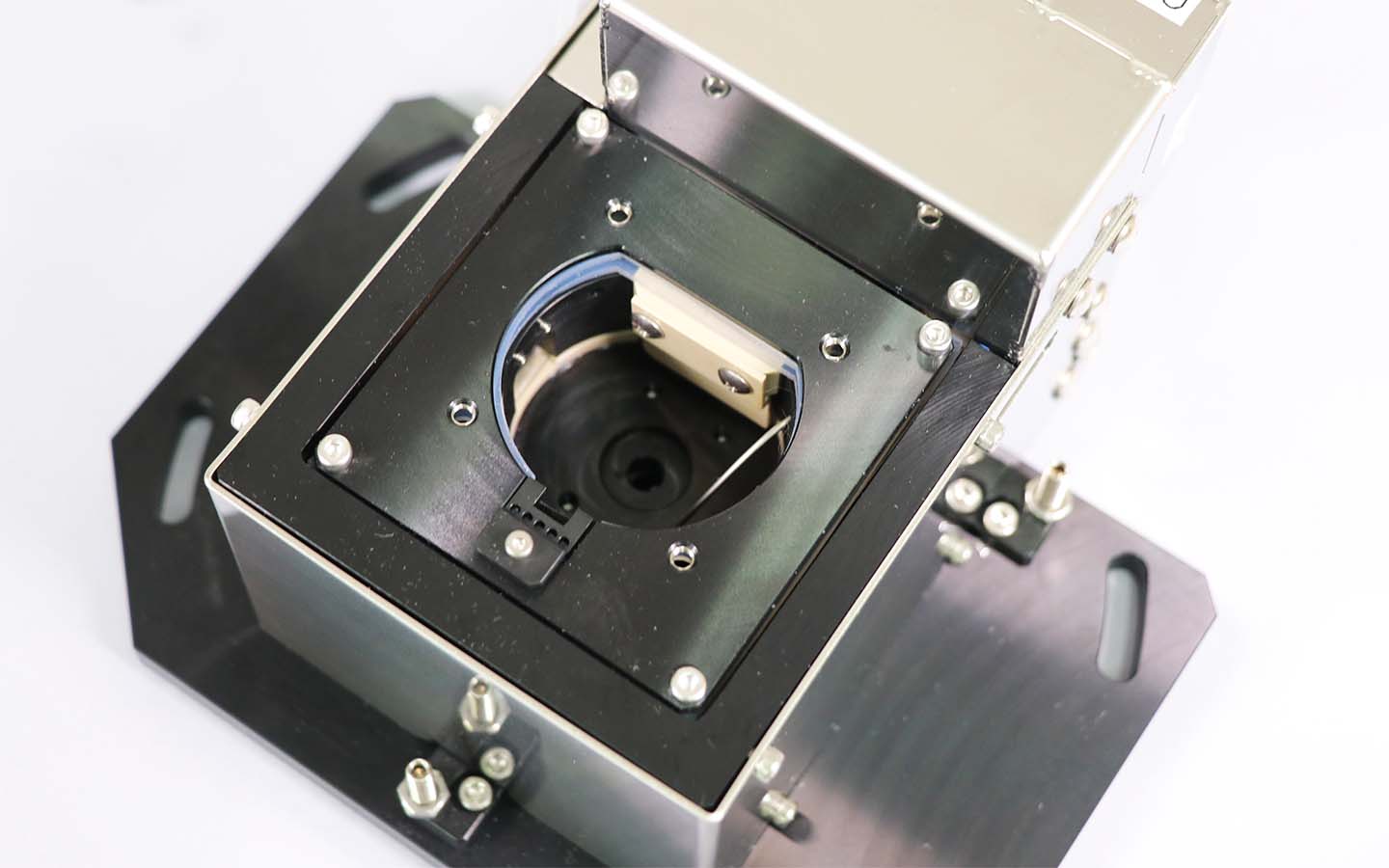

PGF3010-D80-1 |
PGF3010-D80-2 |
PGF3010-108-1 |
PGF3010-108-2 |
Temperature range |
-30°C~+125°C | -40°C~+125°C | -30°C~+125°C | -40°C~+125°C |
Door structure |
Removal (screw) | Removal (screw) | Slide removal | Slide removal |
Tank size |
80mm dia. x 50mm H | □100×H80mm | ||
Upper door glass |
quartz glass | |||
Transmission Structure |
standard | Optional support | ||
Supply voltage |
AC100V | |||
option |
QUARTZ GLASS (AR COATING), TEMPERATURE SENSOR FOR WORKPIECE MEASUREMENT (MAX. 5 POINTS), ETC. | |||
Controllers and Components |
Touch-panel temperature controller, water-cooled circulation chiller | |||
PG/PGF Differences |
Difference between MSA temperature chamber PG: Peltier chamber type, PGF: warm air type | |||
![]() |
![]() |
![]() |
||
forte |
At touch panel,
High-precision temperature control Configure the program |
Air-cooled Peltier system,
Separate fan structure (Vibration proof type) |
Water-cooled Peltier system |
With cooling function
Hot plate, with air-cooled Peltier cooling |
standard price |
Please contact us. | ←arrow (mark or symbol) | ←arrow (mark or symbol) | ←arrow (mark or symbol) |
Standard delivery date |
Please contact us. |
List of models
![]() |
![]() |
|||
---|---|---|---|---|
model number |

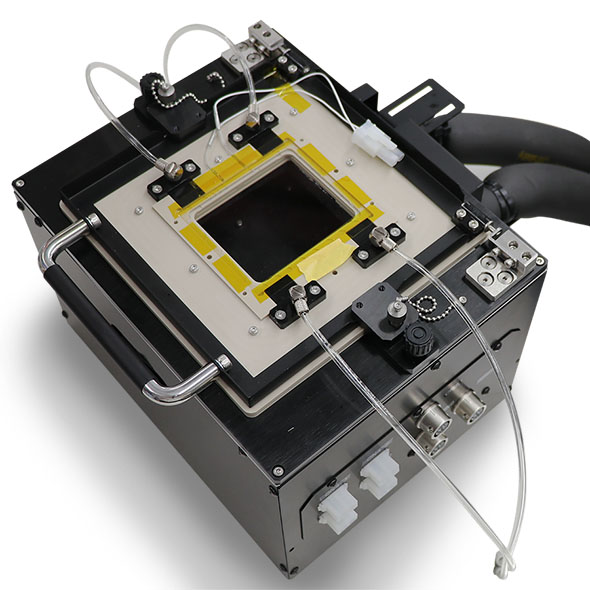

PGF3010-150-1 |
PGF3010-150-2 |
PGF3010-D40 |
PGF3010-D80 |
Temperature range |
-40°C~+90°C | -35°C~+90°C | -35°C~+90°C | -35°C~+125°C |
Door structure |
Hinge open/close | Door Sliding Structure | Removal (screw) | Removal (screw) |
Tank size |
150 x 150 x H80mm | 150 x 150 x H100mm | 40mm dia. x 25mm H | 80mm dia. x 50mm H |
Upper door glass |
Quartz glass, others | |||
Transmission Structure |
Optional support | Optional support | ||
Supply voltage |
AC100V | |||
option |
Sliding door, hinged door quartz glass (AR coating), temperature sensor for workpiece measurement (max. 5 points), etc. | |||
Controllers and Components |
Touch-panel temperature controller, water-cooled circulation chiller | |||
PG/PGF Differences |
Difference between MSA temperature chamber PG: Peltier chamber type, PGF: warm air type | |||
![]() |
![]() |
![]() |
||
forte |
At touch panel,
High-precision temperature control Configure the program |
Air-cooled Peltier system,
Separate fan structure (Vibration proof type) |
Water-cooled Peltier system |
With cooling function
Hot plate, with air-cooled Peltier cooling |
standard price |
Please contact us. | ←arrow (mark or symbol) | ←arrow (mark or symbol) | ←arrow (mark or symbol) |
Standard delivery date |
Please contact us. |
