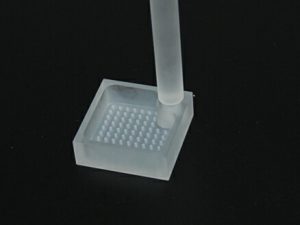

Quartz Glass Wet Process Carrier SGF Series
Quartz glass wafer carrier (standard type), for processes that require a higher level of cleanliness than Teflon
Compared to PTFE and PFA, the durability is much higher, and the structure and material are superior in terms of contamination and particles.
Wide variety of shapes
Shapes and sizes are standardized to accommodate various wet processes.
For small-scale processes
Cleaning jig made of quartz glass with excellent chemical and heat resistance.
Ideal for small-scale process, evaluation, and research applications.
Customization
Customization is also available. Please contact us for more information.
Handle (handle) 3 patterns available
Three types of handles are available: welded, threaded (removable), and no handle. The figure below shows the type without a handle.
[caption id="attachment_3540" align="aligncenter" width="1440"]
Without handle Type Type B[/caption].
List of models
 |
 |
|||||
model number |
SGF0510 |
SFG1010 |
||||
handle (user) part |
TypeA (welding) | TypeB (screw) | TypeC(None) | TypeA (welding) | TypeB (screw) | TypeC(None) |
Handle
|
6mm dia. x L108mm | - | 6mm dia. x L100mm | - | ||
Slit
|
1.5mm | 1.0mm | ||||
Workpiece
|
0.5 to 0.8mm | 0.5 to 0.8mm | ||||
Work
|
10 to 20 mm sq. | 5 to 15 mm sq. | ||||
Work
|
6枚 | 5枚 | ||||
List Price
|
- | - | - | - | - | - |
List of models
|
|
|||||
model number |
SGF0510-02 New! |
SFG1010-02 New! |
||||
handle (user) part |
TypeA (welding) | TypeB (screw) | TypeC(None) | TypeA (welding) | TypeB (screw) | TypeC(None) |
Handle
|
6mm dia. x L108mm | - | 6mm dia. x L100mm | - | ||
Slit
|
2.5mm | 2.0mm | ||||
Workpiece
|
1.5 to 1.8mm | 1.5 to 1.8mm | ||||
Work
|
10 to 20 mm sq. | 5 to 15 mm sq. | ||||
Work
|
6枚 | 5枚 | ||||
List Price
|
- | - | - | - | - | - |
