Ultra High Temperature Hot Plate
Lineup of hot plate construction up to 1000°C maximum temperature

Main applications

WAFER HEATING (RP SERIES), MATERIAL SURFACE RESEARCH AND EVALUATION, INORGANIC MATERIAL HEAT TREATMENT, HEAT RESISTANCE EVALUATION, BAKING, ETC. THE RP SERIES ALSO HAS OPTIONS FOR DOUBLE-SIDED HEATING AND QUARTZ BELL JARS, SO IT CAN ALSO BE USED FOR GAS REPLACEMENT HEATING OF MATERIALS.

MSA FACTORY HEATING KNOW-HOW

We combine various expertise in materials (super heat-resistant plates, heat distortion countermeasures, titanium chassis) heater design, thermal insulation, thermal radiation, etc.

high efficiency

HIGH-PRECISION TEMPERATURE CONTROL CAN BE ACHIEVED BY COMBINING PCC100G AND PCC400 DIGITAL TEMPERATURE CONTROLLERS AND PCC107 PROGRAMMABLE TEMPERATURE CONTROLLER.

safety

The heater design, wiring structure, and other safety features have been taken into consideration. A controller/PCC110 with over-temperature monitoring function is also available. Please refer to the Super High Temperature Hot Plate Catalog 2020.

List of models

model number	PA8005/-CC	PA8010/-CC	PA8015/-CC	PA8020/-CC	PA8030/-CC
Plate Size	64mm x 50mm	100mm x 100mm	150mm x 150mm	200mm x 200mm	300mm x 300mm
Plate Material	heat-resistant superalloy
Power source/voltage	AC100V		AC200V
Temperature distribution	±4%

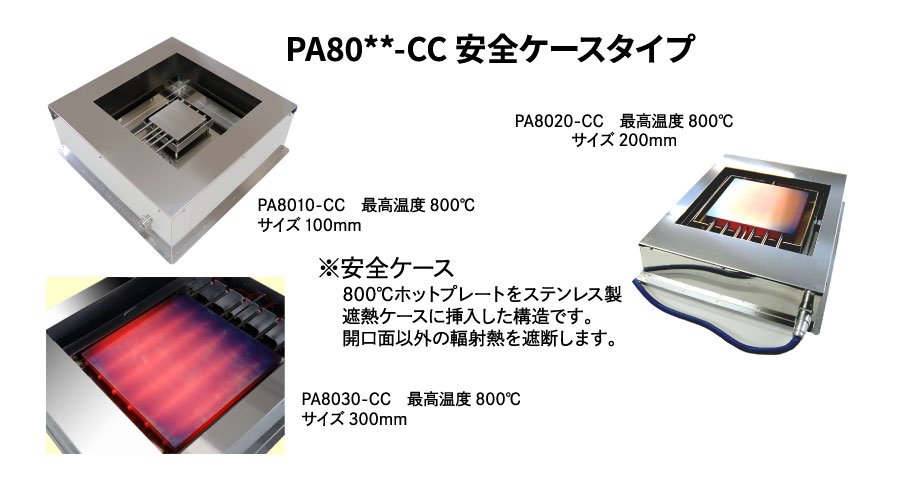

option	SAFETY CASE-CC
controller	PCC100G, PCC107 Other OP		PCC100G-200V, PCC107-200V, others OP		PCC400, PCC407, Other OP
feature	PA8005, 8010, 8015, 8020: without safety cover PA8005-CC, 8010-CC, 8015-CC, 8020-CC, 8030-CC: With safety cover *Please check the outline drawing.
Outline drawing Safety cover With		PA8010-CC Specifications
Outline drawing Safety cover None	PA8005 specification chart	PA8010 specification drawing	PA8015 specification drawing
List price (excluding tax), Controller Including	-CC (with safety cover) with safety cover) -CC (with safety cover) Safety cover without safety cover -without safety cover	-CC (safety cover) with) -Safety cover Safety cover without safety cover -without safety cover	-CC (with safety cover) with safety cover) -CC (with safety cover) Safety cover without safety cover -without safety cover	-CC (with safety cover) -CC (with safety cover) -CC (with safety cover) Without safety cover without safety cover -without safety cover	-CC (with safety cover) -CC (with safety cover) -CC (with safety cover)
Catalogs (General and (general and individual)	Ultra High Temperature Hot Plate Catalog 2020
