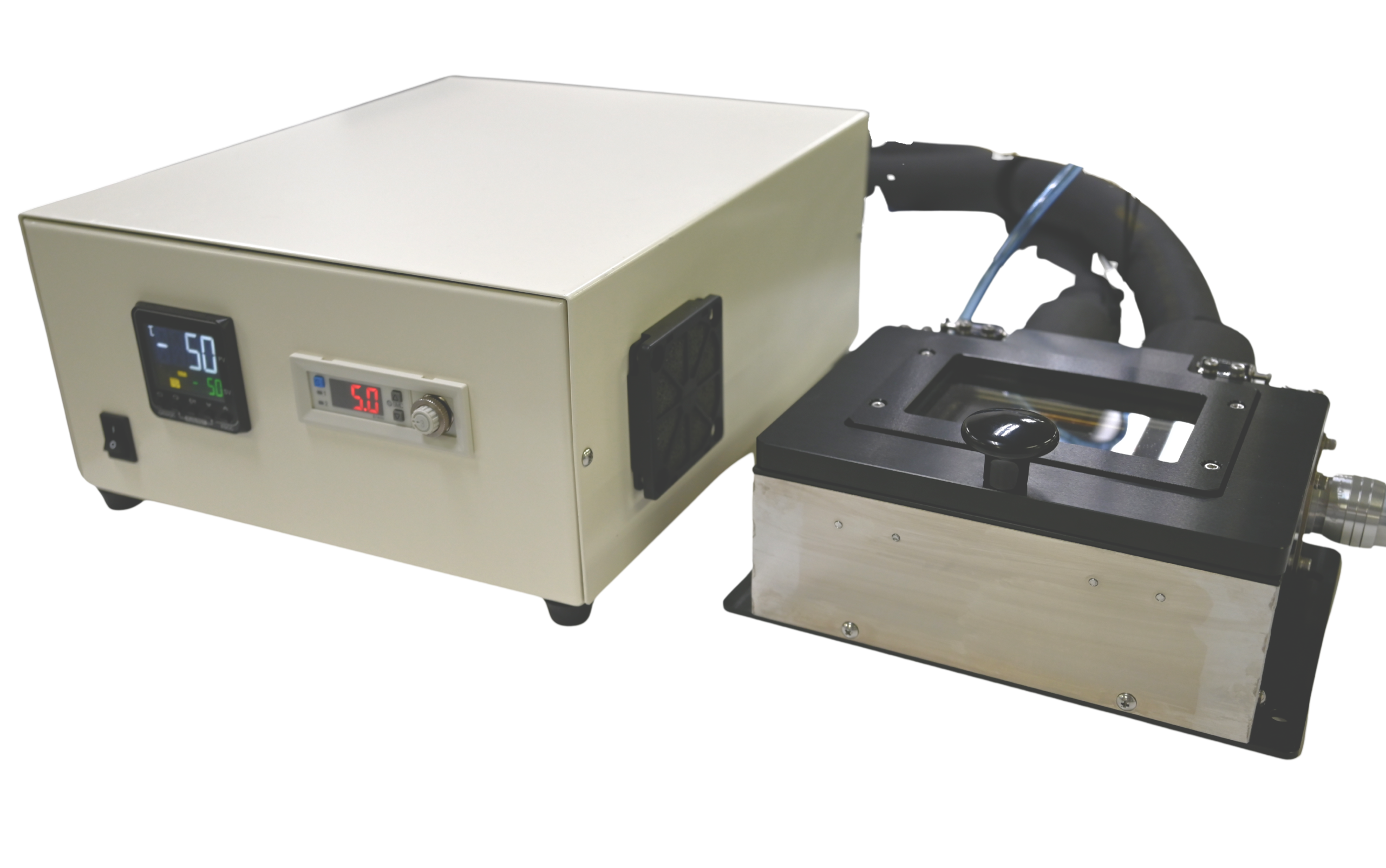

Ultra-compact, Peltier-type temperature chamber
High-speed temperature chamber with Peltier-type low-profile structure
Features of water-cooled Peltier
Compared to air-cooling, reaches lower temperatures -50°C (-10°C for air-cooled type) and can also handle profiles with steep temperature gradients (0.1°C~3°C/sec)
Internal purge structure eliminates condensation
By allowing low dew point air or N2 gas to flow into the chamber, no condensation will form on samples, even at extremely low temperatures. In addition to N2 gas, dry air (low dew point air) can be used to the same effect.
Low vibration and low noise
The Peltier system generates very little vibration and noise. *Water-cooled chiller is used, so vibration caused by the chiller is generated, but the effect is negligible because the chiller is separated from the chamber.
Light Transmittance

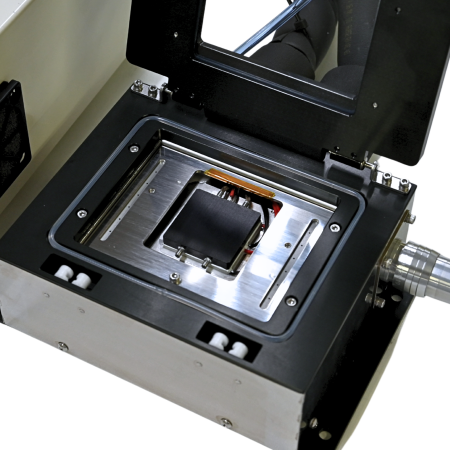

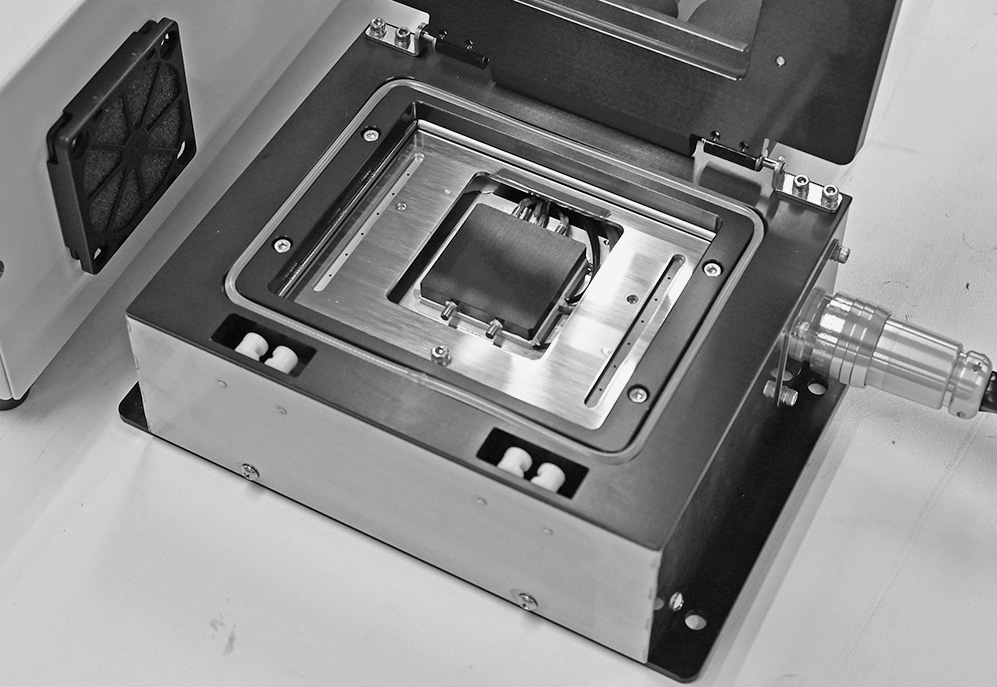

One glass window (transmissive type is available as an option) is installed. It can be used to construct optical device evaluation and compact temperature test systems. In combination with the MSA factory precision stage, a temperature stage that can be positioned precisely can be configured.
Customized support
We can provide custom-made products with short delivery times thanks to our reliable technical support.
Model list ① Water-cooled Peltier chamber type -40/-50°C~+150°C
|
|
 |
 |
|
|---|---|---|---|---|
model number |
PG1506 |
PG1504 |
PG1506-OP1 |
PG1506-OP2 |
Temperature range |
-40°C~+150°C | |||
model number |
PG1506-H |
PG1504-H |
||
Temperature range |
New! -H: -50°C~+150°C |
|||
feature |
Wide temperature range with water-cooled chiller Peltier chamber with N2 gas purge to prevent condensation | |||
feature |
||||
Plate size |
60 x 60mm | 40 x 40mm | 60 x 60mm | |
Upper door glass |
Heat-resistant glass, hinged door opening |
Heat-resistant glass,
Sliding removable door |
||
Transmission Structure |
Optional support | |||
Supply voltage |
AC100V, approx. 10A (main unit), approx. 11A (chiller), 2 systems required | |||
Option (1) |
QUARTZ GLASS (AR COATING), TEMPERATURE SENSOR FOR WORKPIECE MEASUREMENT (MAX. 5 POINTS), ETC. | |||
Option (2) |
Gas-filled for devices, boards for electrical characteristics testing, interfaces, electrical characteristics boards, probe sets, XY micro-travel stages (IXY200) | |||
Option (iii) |
Low dew point filter unit: For use where N2 gas or low dew point air cannot be supplied. | |||
Controllers and Components |
Temperature controller/PCC-107PED-FL (programmable, with N2 gas flowmeter), water-cooled circulating chiller, tubes for circulating water (with insulation), software* (PCS100: temperature program creation and management, log function) | |||
 |
||||
Standard price* (*) |
- | - | - | - |
Standard delivery date |
30-45 days | Approx. 30-60 days | Approx. 30-45 days | |
Related Documents |
MSA Temperature Chamber | _Device_Electrical Test Example | ||
Temperature profile |
||||
catalog |
PG1504 | |||
| DRAWING (PDF) | ||||
| PC Communications Software | PCS100-4ch | |||
*1: Items included in the price: main unit, controller, chiller, antifreeze, piping, tubing, cables, and shipping charges. Items not included in the price: Start-up support (instruction manual is attached), software (PCS100-4ch) Software is for data acquisition, temperature programming, and management. Can also operate stand-alone without software.
Model List ② Air-cooled Peltier Chamber Type -20°C~+150°C
|
|
|
||
|---|---|---|---|---|
model number |
New! PG1506-Ai |
New! PG1504-Ai |
PG1506-OP2 |
|
feature |
Peltier chamber without water-cooled chiller, easy to move and relocate. Also, the introduction price is inexpensive. For open-type Peltier stages, click here ( PJ series). | |||
Temperature range |
-20°C~+150°C | |||
Plate size |
60 x 60mm | 40 x 40mm | 60 x 60mm | |
Upper door glass |
Heat-resistant glass, hinged door opening |
Heat-resistant glass,
Sliding removable door |
||
Transmission Structure |
incompatible | |||
Supply voltage |
AC100V, 10A approx. | |||
Option (1) |
QUARTZ GLASS (AR COATING), TEMPERATURE SENSOR FOR WORKPIECE MEASUREMENT (MAX. 5 POINTS), ETC. | |||
Option (2) |
Gas-filled for devices, boards for electrical characteristics testing, interfaces, electrical characteristics boards, probe sets, XY micro-travel stages (IXY200) | |||
Option (iii) |
Low dew point filter unit: For use where N2 gas or low dew point air cannot be supplied. | |||
Controllers and Components |
Temperature controller/PCC-107PED-FL (programmable, with N2 gas flowmeter), software* (PCS100: temperature program creation and management, log function) | |||
|
||||
Standard price* (*) |
- | - | - | - |
Standard delivery date |
30-60 days | Approx. 30-60 days | Approx. 30-60 days | |
Related Documents |
MSA Temperature Chamber | _Device_Electrical Test Example | ||
Temperature profile |
||||
catalog |
PG1504 | |||
| DRAWING (PDF) | ||||
| PC Communications Software | PCS100-4ch | |||
*1: Items included in the price: main unit, controller, chiller, antifreeze, piping, tubing, cables, and shipping costs. Items not included: Start-up support (instruction manual is attached) Software is for data acquisition, temperature programming, and management. It can also operate by itself without software.
PGF Series Request for Quotation Purchase of main unit and controller only from as one
