Ultra-compact, Peltier-type temperature chamber
高速 昇温・降温式温度チャンバー ペルチェ式薄型構造温度チャンバー、電気部品、電気基板、熱ストレスによる歪試験
超ペルチェ式チャンバー 最広温度範囲
極低温（-50℃、-THシリーズ）から、高温(+150℃）までの幅広い温度範囲（デルタT）を実現。同方式で業界最高レベルです。
独自水冷モジュールによる極低温/小型ヒータ搭載で高温域も高速昇温
ペルチェにて、-50℃までの極低温を実現、小型ヒータも搭載していますので、150℃までの高速昇温にも対応しております。
Features of water-cooled Peltier
Compared to air cooling, it can reach a lower temperature of -40°C (-10°C for air cooling type) and can also handle profiles with steep temperature gradients (0.1°C~3°C/sec). However, since this is a plate heating/cooling system, it may not be able to sufficiently change temperatures for workpieces with a small installation area. Please contact us for sample shapes, etc.
Internal purge structure eliminates condensation
Low dew point air or N2 gas is supplied into the chamber to prevent condensation on samples and other materials even at extremely low temperatures. It can also be used for accurate electrical characteristics testing.
Low vibration and low noise
The Peltier system generates very little vibration and noise. *Water-cooled chiller is used, so vibration caused by the chiller is generated, but the effect is negligible because the chiller is separated from the chamber.
Glass door construction allows
One glass window (transmissive type is available as an option) is installed. It can be used to construct optical device evaluation and compact temperature test systems. In combination with the MSA factory precision stage, a temperature stage that can be positioned precisely can be configured.
Customized support
確かな技術サポートによりカスタム対応品も、短納期でご提供いたします。

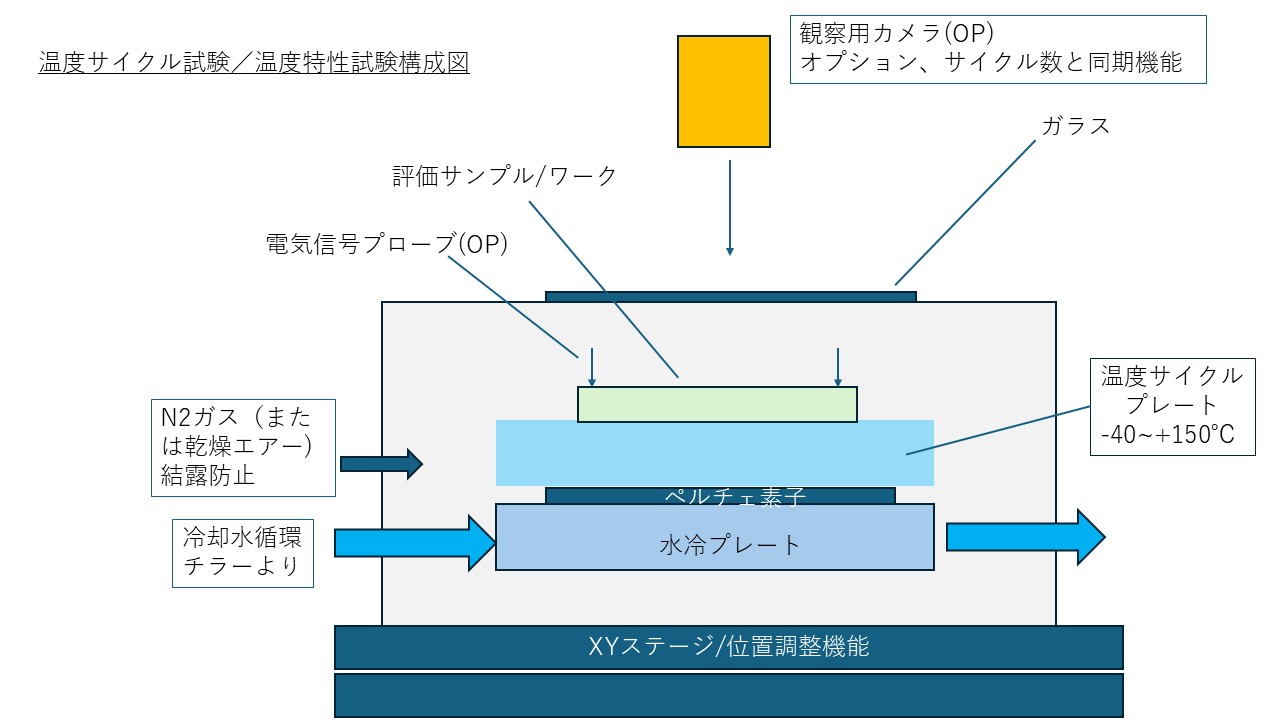

Evaluation of behavior during temperature cycling and thermal expansion
Repeat the temperature cycle (-40°C→+150°C→-40°C→+150°C・・・・・) to evaluate the heat resistance stress of materials, joints, and parts. The actual temperature change behavior can be evaluated from camera images and electrical signal characteristics (resistance value change, etc.), the time of stress occurrence, and the number of cycles by logging the number of cycles with a controller. The number of cycles, real-time temperature, and other data can be recorded, and the corresponding images and data can be viewed. The minute temperature changes and behavior of the material can be grasped, making it possible to acquire information useful for analysis.
温度挙動による評価対象品の歪・ストレス解析
結露フリーでの温度変化なので、ひずみゲージによるひずみ・ストレス解析が可能です。従来の、気相槽式温度チャンバー、ヒートストレス評価装置では、実現困難な解析・評価が可能です。
List of models
|
|
 |
 |
|
|---|---|---|---|---|
model number |
PG1506-T |
PG1504-T |
PG1506-T-OP1 |
PG1506-T-OP2 |
Temperature range |
-40°C~+150°C |
|||
model number |
PG1506-TH |
PG1504-TH |
||
Temperature range |
New! -TH series: -50°C~+150°C |
|||
Temperature rise/fall rate |
0.1~3°C/sec (Maximum rate varies depending on temperature range.) |
|||
feature |
Water-cooled Peltier/heater system with circulating chiller For observation and evaluation while applying high-speed temperature chamber and high-speed temperature change |
|||
Plate size |
60 x 60mm | 40 x 40mm | 60 x 60mm | |
Upper door glass |
Heat-resistant glass, hinged door opening |
Heat-resistant glass,
Sliding removable door |
||
Transmission Structure |
Standard heat-resistant glass t1mm, other options available upon request | |||
Supply voltage |
AC100V | |||
Option (1) |
QUARTZ GLASS (AR COATING), TEMPERATURE SENSOR FOR WORKPIECE MEASUREMENT (MAX. 5 POINTS), ETC. | |||
Option (2) |
Gas-filled for devices, boards for electrical characteristics testing, interfaces, electrical characteristics boards, probe sets, XY micro-travel stages (IXY200) | |||
Controller①/Simple type |
Temperature controller/PCC-107PED-FL programmable, with N2 gas flowmeter, PC connection software (PCS100: temperature profile creation and management, monitoring, logging function) | |||
Controller②/Touch panel type |
Touch panel type controller/PCC118-TP-PG 10" color touch panel, number of cycles, work temperature monitor, with long-term safety function, leak sensor, leak breaker, over-temperature, voltage monitor (OP), other OP, PC connection software | |||
component |
Water-cooled circulating chiller, piping (with insulation), antifreeze solution (dilution rate pre-mixed, polyethylene tanks) | |||
 |
 |
|||
Related Documents |
MSA Temperature Chamber | _Device_Electrical Test Example | ||
Temperature profile |
||||
catalog |
PG1504 | |||
| DRAWING (PDF) | ||||
| PC Communications Software | PCS100-4ch | |||
*1: Items included in the price: main unit, controller, chiller, antifreeze, piping, tubing, cables, and shipping charges.
Items not included in the price: Start-up support (instruction manual is attached), software (PCS100-4ch)
Software is for data acquisition, temperature programming, and management. Can also operate stand-alone without software.
